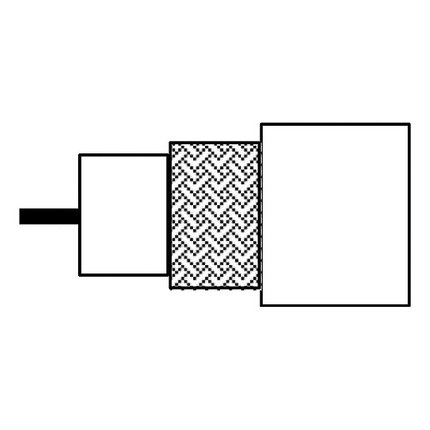

(109)50 Ohm Wireless Transmission Coax, RG174 Type, 26 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, 85% Tinned Copper Braid Shield, PVC Jacket
| Suitable Applications: | Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
| RG Type: | 174 |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 26 AWG | Stranded | 0.48 mm | BCCS - Bare Copper Covered Steel |
| Element | Material | Nom. Insulation Diameter |
|---|---|---|
| Insulated Conductor | PE - Polyethylene | 1.5 mm (0.059 in) |
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 85% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 2.8 mm |
| Table Notes: | According to EN 50290-2-20 |
| Frequency | Nom. Attenuation |
|---|---|
| 10 MHz | 11 dB/100m |
| 200 MHz | 42 dB/100m |
| 1000 MHz | 110 dB/100m |
| Table Notes: | Max. attenuation 10% higher |
| Max. Conductor DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|
| 317 Ohm/km (96.6 Ohm/1000ft) | 100 pF/m (30 pF/ft) | 50 Ohm | 66% |
| Voltage Rating |
|---|
| 1400 V DC / 1000 V RMS |
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
| Max. Pull Tension: | 90 N (20 lbf) |
| Environmental Suitability: | Indoor - Euroclass Eca |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| Military Compliance: | MIL-C-17 |
| European Directive Compliance: | EU CE Mark |
| UK Regulation Compliance: | UKCA Mark |
| Update and Revision: | Revision Number: 0.196 Revision Date: 12-22-2023 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| MRG1740.0050 | Black | Reel | 50 m | 8719605102874 |
| MRG1740.00500 | Black | Reel | 500 m | 8719605102881 |
