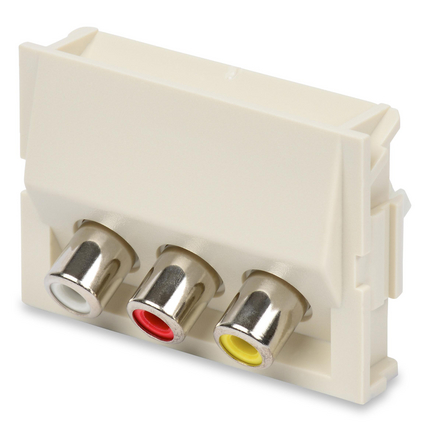

(4)MediaFlex RCA Insert, 3-Port, Available in several colors.
| Suitable Applications: | Multimedia |
| Height: | 1.39 m |
| Width: | 2.05 |
| Depth: | 1.41 |
| Packaging: | Individually packaged in a plastic bag. |
| Weight: | 0.05 kg |
| Description | Material | Type |
|---|---|---|
| Front Connection | Metal | RCA |
| Rear Connection | Plastic - UL94V-0 | 110 |
| Insert | Plastic - UL94V-0 |
| Installation Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -40 to 70°C |
| Operating Temperature Range: | -10 to 60°C |
| Footprint/Type: | Mediaflex |
| Tool Compatibility: | Termination Station (AX101852), Release Tool (AX101185) |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | ACA, Bi-national Standard Listed |
| Related Parts: | Compatible with MediaFlex Faceplates |
| Item # | Color |
|---|---|
| AX101878 | Almond |
| AX101880 | Black |
| AX101877 | Gray |
| AX102578 | Ivory |
| AX101879 | White |
| AX102616 | White |
| Included Parts: | Pin assignment guide |
| Notes: | For proper installation refer to Installation Guide PX102063 available on our web site at http://www.belden.com |
| Update and Revision: | Revision Number: 0.232 Revision Date: 03-04-2023 |
