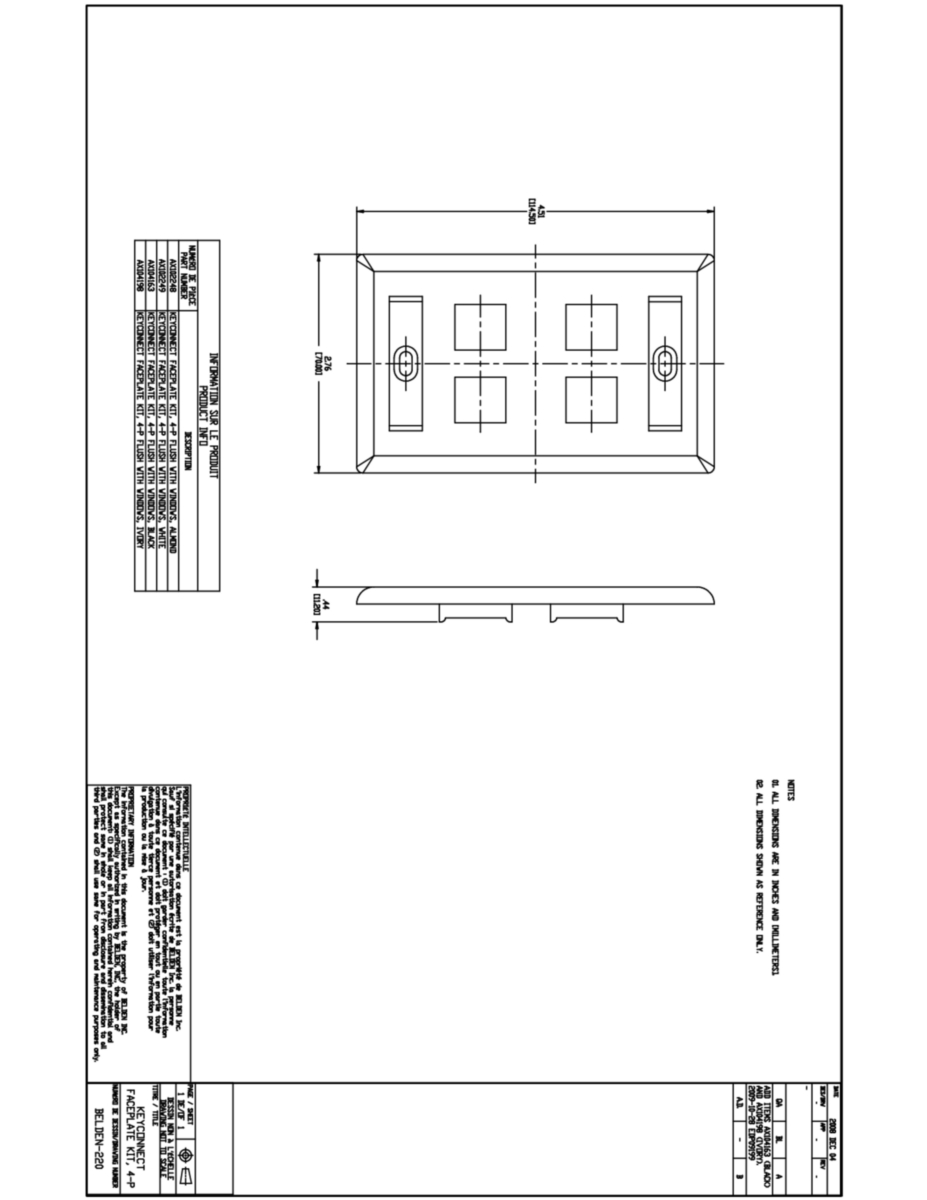

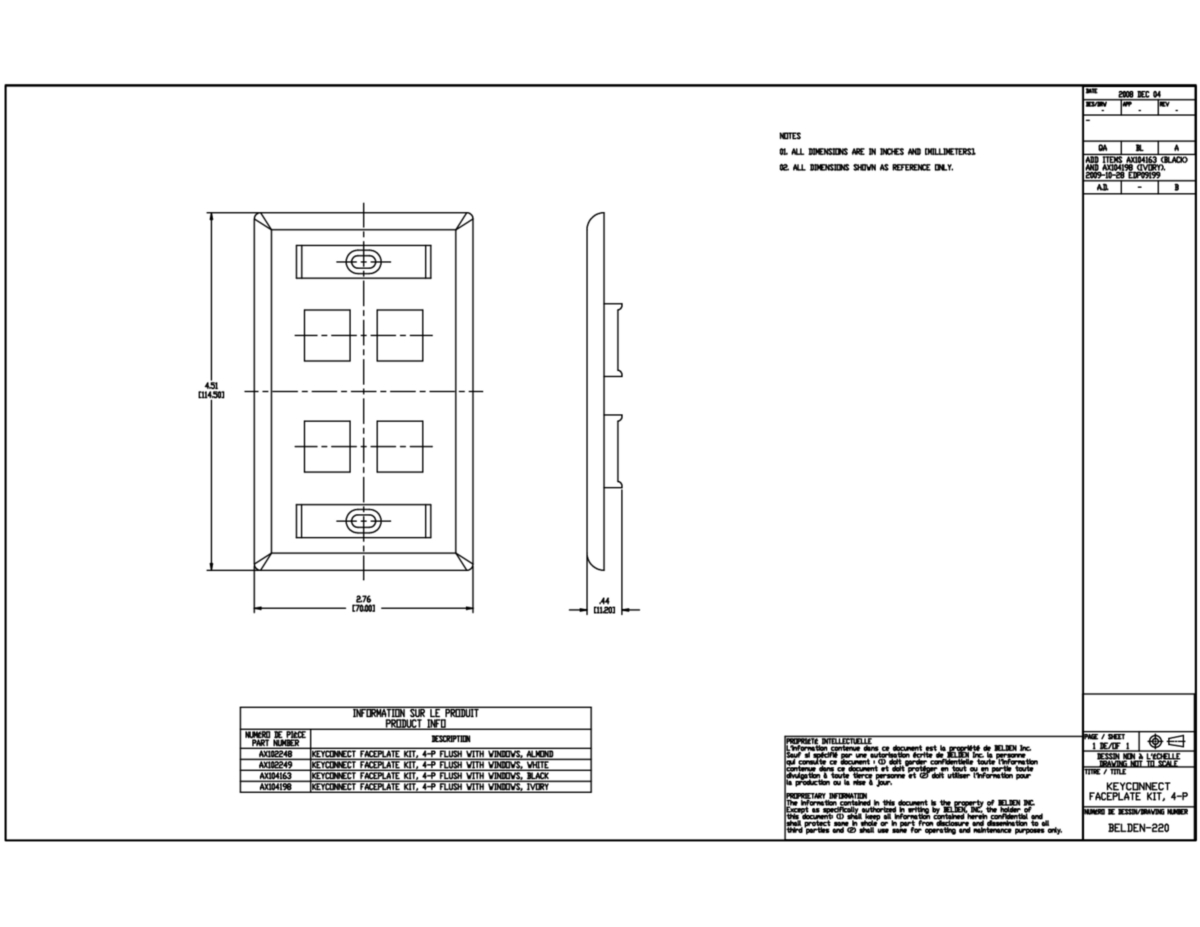

(109)KeyConnect Faceplate, Single Gang, Flush, Compatible with KeyConnect style modular jacks
| Suitable Applications: | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400, 1200, fiber and coax |
| Height: | 4.5 m |
| Width: | 2.75 |
| Depth: | 0.26 |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a plastic bag. |
| Weight: | 0.06 kg |
| Material |
|---|
| Plastic - UL94V-0 |
| Installation Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -40 to 70°C |
| Operating Temperature Range: | -10 to 60°C |
| Footprint/Type: | KeyConnect |
| Connector/Hardware Retention: | 20 lbs |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | Bi-national Standard Listed |
| Related Parts: | Compatible with KeyConnect-style Modular Jacks 10GX, CAT6+, CAT5E and KeyConnect-style Fiber and Coax Connectors |
| Item # | Color | Port Count |
|---|---|---|
| AX102248 | Almond | 4 Port |
| AX102250 | Almond | 6 Port |
| AX103922 | Almond | 1 Port |
| AX103923 | Almond | 2 Port |
| AX103924 | Almond | 3 Port |
| AX104160 | Black | 1 Port |
| AX104161 | Black | 2 Port |
| AX104162 | Black | 3 Port |
| AX104163 | Black | 4 Port |
| AX104164 | Black | 6 Port |
| AX104464 | Dark Gray | 4 Port |
| AX102249 | Electric White | 4 Port |
| AX102251 | Electric White | 6 Port |
| AX102660 | Electric White | 1 Port |
| AX102661 | Electric White | 3 Port |
| AX104197 | Ivory | 2 Port |
| AX104198 | Ivory | 4 Port |
| AX104199 | Ivory | 6 Port |
| AX104565 | Ivory | 1 Port |
| Included Parts: | 6-32 screw, carton label, clear window |
| Notes: | For proper installation refer to Installation Guide PX103826. Visit our web site at http://www.belden.com |
| Update and Revision: | Revision Number: 0.196 Revision Date: 03-04-2023 |
