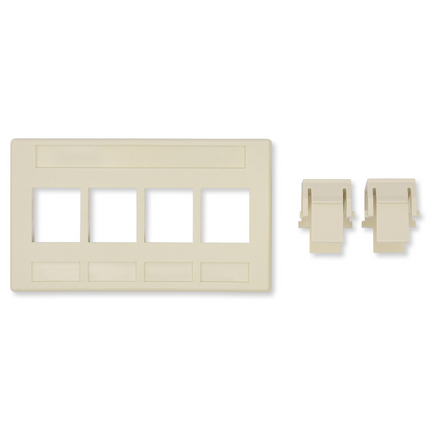

(4)KeyConnect Modular Furniture Adapter, Compatible with Keyconnect UTP and Multimedia Modules
| Suitable Applications: | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400 and 1200. |
| Height: | 1.84 m |
| Width: | 3.12 |
| Depth: | 0.19 |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a plastic bag |
| Material |
|---|
| Plastic - UL94V-0 |
| Installation Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -10 to 75°C |
| Operating Temperature Range: | -10 to 60°C |
| Footprint/Type: | KeyConnect |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| Safety Listing: | Bi-national Standard Listed |
| Related Parts: | Compatible with 10GX, CAT6+ and CAT5E KeyConnect UTP and Multimedia Modules |
| Item # | Color | Port Count |
|---|---|---|
| AX103925 | Almond | 3 Port |
| AX103926 | Almond | 4 Port |
| AX102292 | Black | 3 Port |
| AX102901 | Black | 4 Port |
| AX104457 | Dark Gray | 3 Port |
| AX102291 | Electric White | 3 Port |
| AX102900 | Electric White | 4 Port |
| Included Parts: | installation sheet, blank |

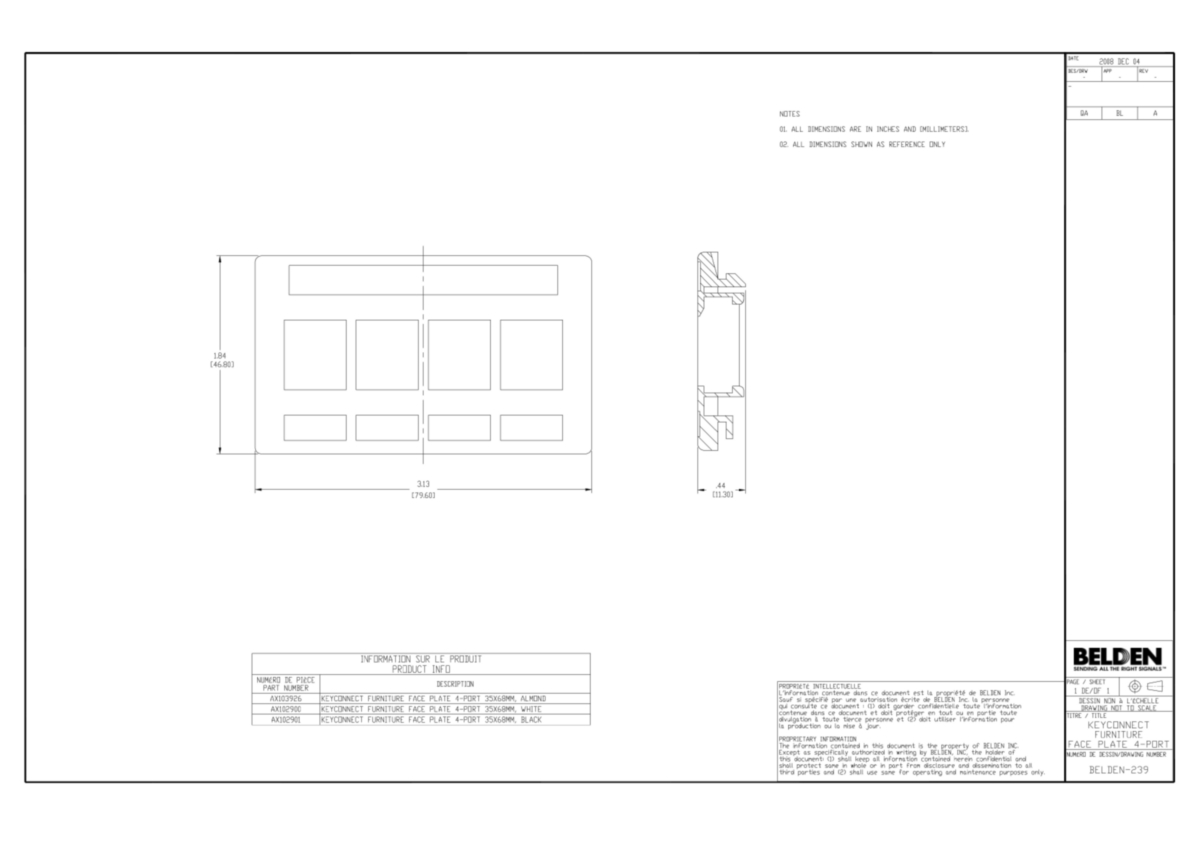

| Notes: | For proper installation refer to installation guide included with the product or visit our web site at http://www.belden.com. Wall opening: Minimum 2.67 X 1.35 in., Maximum 2.75 X 1.38 in. Wall thickness: Maximum 0.075 in. |
| Update and Revision: | Revision Number: 0.167 Revision Date: 03-04-2023 |
