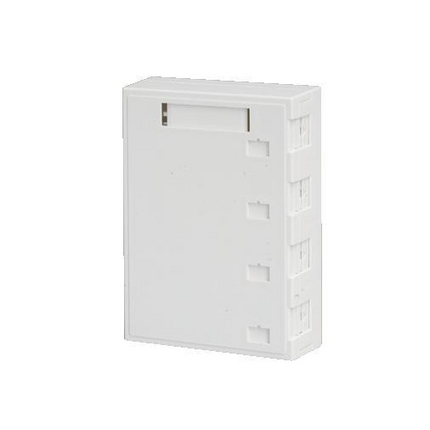

(109)KeyConnect 6 Port Media Box is available in several colors.
| Height: | 1.06 m |
| Width: | 3.32 |
| Depth: | 4.87 |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a box. |
| Weight: | 0.2 kg |
| Material |
|---|
| Plastic |
| Installation Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -10 to 75°C |
| Footprint/Type: | KeyConnect |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| UL Flammability: | UL2043 Air Handling Spaces |
| Related Parts: | Compatible with KeyConnect-style Modular jacks10GX, CAT6+ and CAT5E. |
| Item # | Color | Port Count |
|---|---|---|
| AX106512-BK | Black | 6 Port |
| AX105816 | Brown | 6 Port |
| AX106512-EW | Electric White | 6 Port |
| Included Parts: | (4) #6-32 mounting screws, (2) #4-40 cover std screws, (1) zip tie, (2) label, (2) label, window, (2) 2 sided adhesive |
| Notes: | suitable for installation in Plenum/Air Handling Spaces per UL 2043 |
| Update and Revision: | Revision Number: 0.67 Revision Date: 03-04-2023 |
