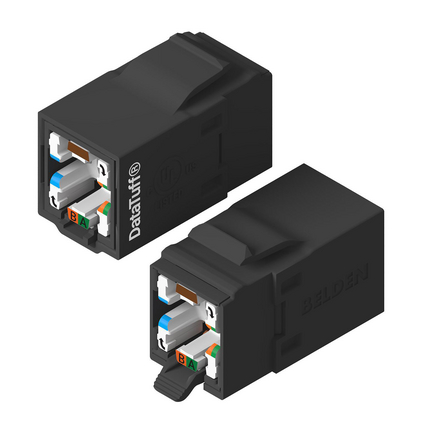

Ind REVConn C6A UTP Couplers - DataTuff Industrial REVConnect Coupler CAT6A UTP


Industrial REVConnect CAT6A Coupler that Connects 2 Cores

Product Overview

Environmental Space: Indoor
Suitable Applications: TIA Category 6A, ISO Class EA, 10GBASE-T

Physical Characteristics (Overall)

Height: 0.87
Width: 0.63
Depth: 1.43
Wiring Scheme: T568A/B
Packaging: Individually packaged in a plastic bag.
Weight: 0.018 lbs

Connectors

Materials
DescriptionMaterialType
Front Connection50uin Gold plated contacts over NickelInd REVConnect
Rear ConnectionCopper alloy, Gold plated contacts over NickelInd REVConnect
Connector BodyPolycarbonate - UL94V-0

Electrical Characteristics

Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm
Termination Resistance: 2.5 m-Ohm

Temperature Range

Installation Temp Range: -40°C To +70°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -40°C To +70°C

Mechanical Characteristics

Footprint/Type: KeyConnect
Tool Compatibility: RVUTT01 Termination Tool
Termination Front Connection: Mated Connection
Termination Front Connection Durability: 200 cycles
Termination Rear Connection: Mated Connection
Termination Rear Connection Durability: 200 cycles
Cable/Connector Retention: 25 lbs.
Connector/Hardware Retention: 20 lbs
Plug/Connector Retention: 11.250 lbs

Standards

UL Rating: UL94V-0
Telecommunications Standards: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
Other Specification: UL 1863, IEC 60603-7, FCC part 68-F

Applicable Environmental and Other Programs

EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

UL Flammability: UL2043 Air Handling Spaces
Safety Listing: c(UL)us Listed

Part Number

Related Parts: Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels
Variants
Item #Color
RVAIU2UBK-B24Black
RVAIU2UBK-S1Black
RVAIU2UEW-B24Electric White
RVAIU2UEW-S1Electric White

Product Notes

Notes: Please see Installation Guide PX106876.

History

Update and Revision: Revision Number: 0.11 Revision Date: 07-11-2019
Date: 2006-07-01
No accessories are available for this product
