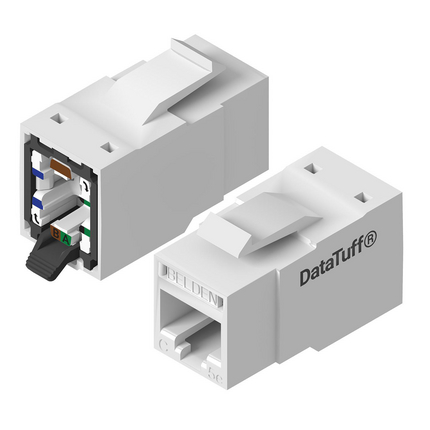

Ind REVConn C5E UTP Jacks - DataTuff Industrial REVConnect RJ45 Jack CAT5E UTP


Industrial REVConnect IP20 RJ45 Unshielded CAT5E Jack with Universal Core

Product Overview

Environmental Space: Indoor
Suitable Applications: TIA Category 5E, ISO Class D, 1GBASE-T

Physical Characteristics (Overall)

Height: 0.94
Width: 0.64
Depth: 1.337
Wiring Scheme: T568A/B
Packaging: Individually packaged in a plastic bag.
Weight: 0.016 lbs

Connectors

Materials
DescriptionMaterialType
Front ConnectionCopper Clad Flexible PCB, 50uin Gold plated contacts over NickelRJ45
Rear ConnectionCopper alloy, Gold plated contacts over NickelInd REVConnect
Connector BodyPBT glass reinforced UL94V-0

Electrical Characteristics

Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
Current Rating: 1.300 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm
Termination Resistance: 2.5 m-Ohm

Temperature Range

Installation Temp Range: -40°C To +70°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -40°C To +70°C

Mechanical Characteristics

Footprint/Type: KeyConnect
Tool Compatibility: RVUTT01 Termination Tool
Plug /Jack Compatibility: RJ45, RJ11
Termination Front Connection: Mated Connection
Termination Front Connection Durability: 750 cycles
Termination Rear Connection: Mated Connection
Termination Rear Connection Durability: 200 cycles
Cable/Connector Retention: 25 lbs.
Connector/Hardware Retention: 20 lbs
Plug/Connector Retention: 11.250 lbs

Standards

UL Rating: UL94V-0
Telecommunications Standards: Category 5e - TIA 568.C.2, Category 5 - ISO/IEC 11801:2002 Ed.2
IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
Other Specification: UL 1863, IEC 60603-7, FCC part 68-F

Applicable Environmental and Other Programs

EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

UL Flammability: UL2043 Air Handling Spaces
Safety Listing: c(UL)us Listed

Part Number

Related Parts: Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels
Variants
Item #Color
RV5IJ2UBK-B24Black
RV5IJ2UBK-S1Black
RV5IJ2UBL-B24Blue
RV5IJ2UBL-S1Blue
RV5IJ2UEW-B24Electric White
RV5IJ2UEW-S1Electric White
RV5IJ2UOR-B24Orange
RV5IJ2UOR-S1Orange
RV5IJ2UTE-B24Teal
RV5IJ2UTE-S1Teal

Product Notes

Notes: Please see Installation Guide PX106876.

History

Update and Revision: Revision Number: 0.10 Revision Date: 05-02-2019
Date: 2006-07-01
