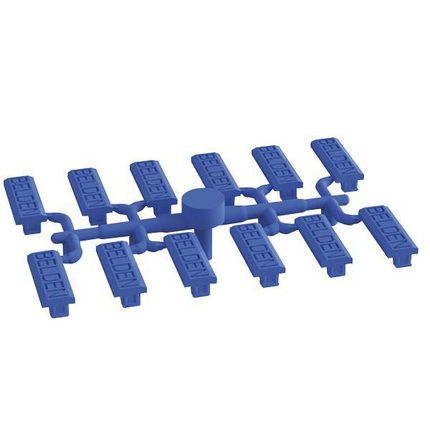

(109)KeyConnect Color-coded Icon Kit for Shielded Jacks and Couplers
| Item # | Color |
|---|---|
| AX104632-BK | Black |
| AX104632-BL | Blue |
| AX104632-GY | Gray |
| AX104632-GN | Green |
| AX104632-OR | Orange |
| AX104632-PR | Purple |
| AX104632-RD | Red |
| AX104632-EW | White |
| AX104632-YE | Yellow |
| Update and Revision: | Revision Number: 0.136 Revision Date: 03-04-2023 |
