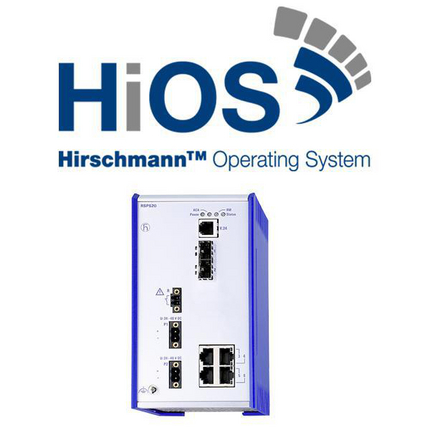

HiOS 7 - RSPS (2S) - Device Software Release 7 for all RSPS - Smart Switches - all available minor and bugfix releases


HiOS – Hirschmann Operating System: The HiOS software from Hirschmann increases the power and performance of its Industrial Ethernet switches. HiOS software supports various security mechanisms, comprehensive management and diagnostic methods, precise time synchronization and redundancy protocols. All relevant software files can be downloaded from the "Documents " tab

Product description

Type: Suitable for RSPS series
Part Number: free download

Software

Switching: Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN, IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP)
Redundancy: Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), RSTP 802.1D-2004 (IEC62439-1), RSTP Guards
Management: TFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet
Diagnostics: Management Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, System Information, Self-Tests on Cold Start, SFP Management, Configuration Check Dialog, Switch Dump, Snapshot Configuration Feature
Configuration: Automatic Configuration Undo (roll-back), Configuration Fingerprint, Text-based Configuration File (XML), BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA31 (SD card), HiDiscovery, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help
Security: MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, Denial-of-Service Prevention, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking
Time synchronisation: PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, Buffered Real Time Clock, SNTP Client, SNTP Server
Industrial Profiles: EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), ModbusTCP, PROFINET IO Protocol
Miscellaneous: Manual Cable Crossing, Port Power Down

Further Instructions

Product Documentation: https://www.doc.hirschmann.com

History

Update and Revision: Revision Number: 0.71 Revision Date: 07-20-2023
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.0.06
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.0.07
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.0.08
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.1.00
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.0.03
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.0.04
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.1.01
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.1.02
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.1.03
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.1.04
Software RSPS
Description: Software for all RSPS - Smart Switches - MIB files and issue list are included in the Zip file
Version: 07.1.05
