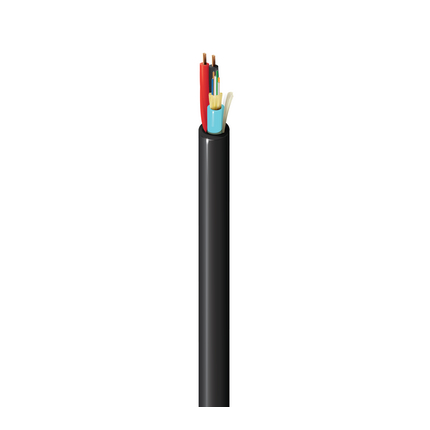

HD3D0060212RJ - Indoor/Outdoor Hybrid Copper-Fiber Cable, OM3, 6 Distribution Fibers, #12-2c, CL3R-OF

FX HYBRID INDOOR/OUTDOOR, OM3, DISTRIBUTION, 6 FIBERS, 02 x 12AWG, CL3R-OF, 4.5MM SUB X 900UM, BLACK JACKET

Part Number: HD3D0060212RJ

Product Overview

Suitable Applications: Indoor/Outdoor

Construction

Fiber Cable Construction
Fiber TypeFiber CountSubunit Color
OM36Aqua
Fiber Color Coding: Blue, Orange, Green, Brown, Gray, White
Buffer Specification
Buffer MaterialBuffer Diameter
PVC900 μm
Bulk Cable Weight: 108 lbs/1000ft

SubUnit Specifications

Fibers Per Subunit: 6
SubUnit Diameter: 0.220 in (5.6mm)

Jacket Specifications

Conductor Count: 2
Outer Jacket Material
Nominal Diameter
0.484 in (12.3mm)
Outer Jacket Color: Black
Number of Outer Jacket Ripcords: 1

Optical Characteristics

Fiber Core Diameter: 50/125μm
Max Attenuation at 1300 nm: 1.0 dB/km
Max Attenuation at 850 nm: 3.0 dB/km

Mechanical Characteristics

Mechanical Tests
DescriptionRequirement/Value
Cable Min. Bend Radius Installation (Short Term)15x Cable OD
Cable Min. Bend Radius Operation (Long Term)10x Cable OD
Cable Max. Tensile Strength Installation (Short Term)135 N (600 lbf)
Cable Max. Tensile Strength Operation (Long Term)40 N (180 lbf)

Temperature Range

Operating Temp Range: -40°C to +70°C
Installation Temp Range: -10°C to +60°C
Storage Temp Range: -40°C to +70°C

Standards

UL Rating/Flame Test: Riser
NEC/(UL) Specification: CL3R-OF
Telecommunications Standards: ICEA S-120-742
REACH: Complies
RoHS: Complies

History

Update and Revision: Revision Number: 0.12 Revision Date: 10-28-2019
