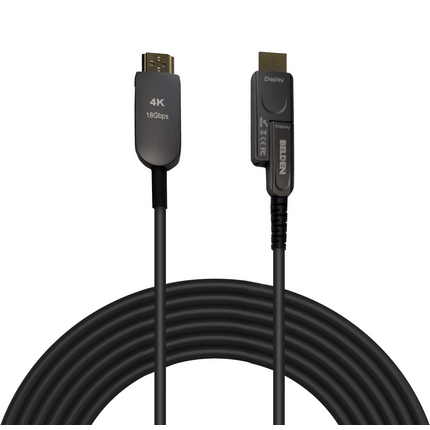

(4)HDMI 2.0 Active Optical cable, supports up to 4K @60Hz (color space 4:4:4) and bandwidth of 18Gbps, Up to 100m signal integrity transmission, One plug provides an detachable adaptive type A adapter
| Suitable Applications: | Blue-ray, 3D Video, Projector, DVR, Game Consoles, LED signboards in the stadiums, squares etc, TV station, Augmented reality/virtual reality (AR/VR), Security & monitor systems, Home Theater |
| Color | Diameter - Tolerance |
|---|---|
| Black | 4.5 mm |
| Description | Material |
|---|---|
| Contacts | Gold plated |
| Housing | Zinc alloy |
| Cable Type: | Fiber (4F x OM3) and Copper hybrid cables |
| Data Rate: | 18 Gbps |
| Max. Power Rating [W] |
|---|
| 0.25 W |
| Operating Temperature Range: | 0°C To +50°C |
| Max. Pull Tension: | 100 N |
| Min. Bend Radius During Installation: | 90 mm |
| Connection |
|---|
| Type A, Type D(Provides an adaptive type A adapter) |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Compliant |
| Item # | Color | Length |
|---|---|---|
| HA20AD005M | Black | 5 m |
| HA20AD010M | Black | 10 m |
| HA20AD015M | Black | 15 m |
| HA20AD020M | Black | 20 m |
| HA20AD030M | Black | 30 m |
| HA20AD040M | Black | 40 m |
| HA20AD050M | Black | 50 m |
| HA20AD060M | Black | 60 m |
| HA20AD070M | Black | 70 m |
| HA20AD080M | Black | 80 m |
| HA20AD090M | Black | 90 m |
| HA20AD100M | Black | 100 m |
| Footnote: | The Plug must be connected to the right direction to function properly. DO NOT over-bend/twist/Kink the cable behind the connector. Handle with Plug housing instead of cable when pull/insert the plug into socket. |
| Notes: | Flame Test: VW1; Power Supply: No external power required |
| Update and Revision: | Revision Number: 0.16 Revision Date: 05-15-2025 |
