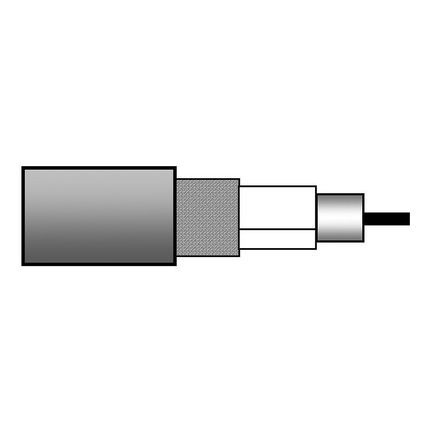

(109)Broadband Coax, H121, 20 AWG Solid Bare Copper Conductor, PE Insulation, Copper Foil + 45% Bare Copper Braid Shield, PVC Jacket
| Suitable Applications: | Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
| RG Type: | 59 |
| Series Type: | 59 |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 21 AWG | Solid | 0.8 mm | BC - Bare Copper |
| Element | Material | Nom. Insulation Diameter |
|---|---|---|
| Insulated Conductor | PE - Polyethylene (Foam) | 3.5 mm (0.14 in) |
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Bi-Laminate (Bare Copper+Poly) | 100% |
| 2 | Braid | Bare Copper (BC) | 45% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 5 mm |
| Table Notes: | According to European Standard EN 50290-2-20 |
| Regularity of Impedance: | Min. 40 dB |
| Frequency | Min. Return Loss |
|---|---|
| 5 - 470 MHz | 20 dB |
| 470 - 1000 MHz | 18 dB |
| 1000 - 2000 MHz | 16 dB |
| 2000-3000 MHz | 15 dB |
| Table Notes: | In each frequency band, 3 peak values up to 4 dB lower are allowed |
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 1.7 dB/100m |
| 50 MHz | 5.3 dB/100m |
| 100 MHz | 7.6 dB/100m |
| 200 MHz | 10.8 dB/100m |
| 400 MHz | 15.4 dB/100m |
| 600 MHz | 19.1 dB/100m |
| 800 MHz | 22.2 dB/100m |
| 1000 MHz | 25 dB/100m |
| 1350 MHz | 29.3 dB/100m |
| 1600 MHz | 32.2 dB/100m |
| 1750 MHz | 33.8 dB/100m |
| 2150 MHz | 37.8 dB/100m |
| 2400 MHz | 40.1 dB/100m |
| Table Notes: | Max. attenuation 10% higher |
| Max. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 35 Ohm/km (11 Ohm/1000ft) | 24 Ohm/km (7.3 Ohm/1000ft) | 53 pF/m (16 pF/ft) | 75 Ohm | 84% |
| Frequency | Max. Transfer Impedance |
|---|---|
| 5-30 MHz | Max. 10 mOhm/m |
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 85 dB |
| Screening Class: | B |
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
| Stationary Min. |
|---|
| 50 mm (2.0 in) |
| Environmental Suitability: | Indoor - Euroclass Eca |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| CENELEC Compliance: | EN 50117-1 |
| European Directive Compliance: | EU CE Mark |
| UK Regulation Compliance: | UKCA Mark |
| Update and Revision: | Revision Number: 0.204 Revision Date: 03-30-2023 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| H121C00.00B100 | White | Flat Box | 100 m | 8719605085764 |
