H1001C2 - COAX RF H1001 PVC


COAX RF [2.6/7.1] H1001 STRANDED PVC

Product Overview

Environmental Space: Indoor/Outdoor
Suitable Applications: Coaxial cables used for Radio-Frequency designed according the International Standard IEC 1196

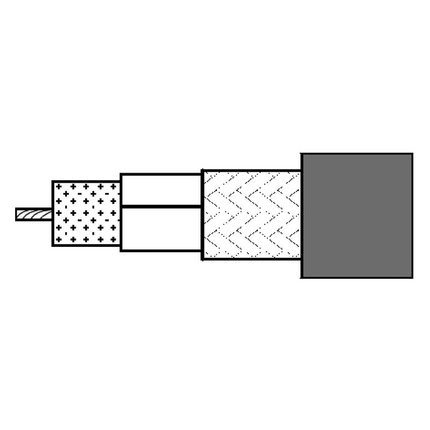

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x DNominal DiameterDiameter +/- ToleranceNo. of Coax
10StrandedBC - Bare Copper19x0.54 mm2.7 mm0.05 mm1
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
DielectricFPE - Foamed Polyethylene7.15 mm0.2 mm
Insulation, Table Note: Centricity min. 85%
Outer Shield Material
TypeLayerMaterialCoverage [%]Min. OverlapNominal DiameterDiameter +/- ToleranceCoverage +/- Tolerance
Tape1Copper - Polyester2 mm
Braid2BC - Bare Copper49 %7.9 mm0.25 mm5 %
Outer Jacket Material
MaterialNominal DiameterDiameter - Tolerance
PVC - Polyvinyl Chloride10.3 mm0.3 mm
OuterJacket1, Table Note: According to European Standard HD 624

Construction and Dimensions

Min Elongation at Breakof Jacket: 300 %
Min Tensile Strength of Jacket: 10 MPa

Electrical Characteristics

Conductor DCR
Max. Conductor DCRMax. Conductor LoopMax. Shield DCR
4.5 Ohm/km16.5 Ohm/1000ft12 Ohm/km
Capacitance
Nom. CapacitanceCapacitance Tolerance
80 pF/m3 pF/m
Impedance
Nominal Characteristic ImpedanceNominal Characteristic ToleranceRegularity of Impedance
50 Ohm2 OhmMin. 46 dB
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
5 MHz1 dB/100m
50 MHz3.3 dB/100m
100 MHz4.7 dB/100m
200 MHz6.7 dB/100m
400 MHz9.8 dB/100m
600 MHz12.2 dB/100m
800 MHz14.4 dB/100m
1000 MHz16.3 dB/100m
1350 MHz19.3 dB/100m
1750 MHz22.5 dB/100m
2150 MHz25.4 dB/100m
2400 MHz27.1 dB/100m
5000 MHz42.4 dB/100m
10000 MHz66.4 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]Velocity of Propagation Tolerance
83 %2 %
Screening
Frequency [MHz]Min. Screening Attenuation
30 - 1000 MHz100 dB
Voltage
Voltage Test Dielectric
3.0 kV DC

Temperature Range

Installation Temp Range: -5°C To +50°C
Storage Temp Range: -25°C To +70°C
Operating Temp Range: -25°C To +70°C

Mechanical Characteristics

Bulk Cable Weight: 127 kg/km
Min Bend Radius (W/o Pulling Strength): 100 mm
Crush Resistance: Max. 1% (load of 700N) N

Standards

ISO/IEC Compliance: IEC 1196
RG Type: 8/U Type

Applicable Environmental and Other Programs

EU RoHS Compliance Date (yyyy-mm-dd): 1998-01-01

Flammability, LS0H, Toxicity Testing

Burning Load: 1600 kJ/m

Part Number

Variants
Item #ColorLength
H1001C2.00500Black500 m

History

Update and Revision: Revision Number: 0.146 Revision Date: 08-22-2019
Date: 1998-01-01
