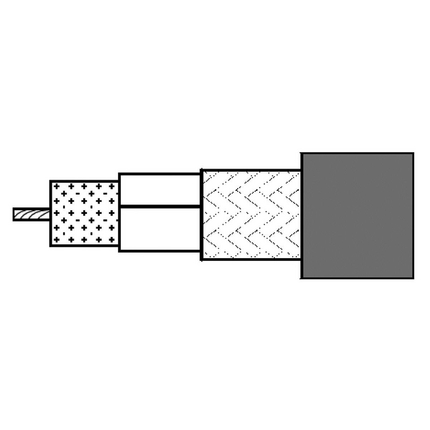

(109)50 Ohm Wireless Transmission Coax, H1000, RG8, 10 AWG Stranded Bare Copper Conductor, PE Insulation, Copper foil + 50% Bare Copper Braid Shield, PE Jacket
| Suitable Applications: | Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
| RG Type: | 8 |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 10 AWG | Stranded | 2.7 mm | BC - Bare Copper |
| Element | Material | Nom. Insulation Diameter |
|---|---|---|
| Insulated Conductor | PE - Polyethylene (Foam) | 7.15 mm (0.281 in) |
| Table Notes: | Centricity min. 85% |
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Bi-Laminate (Bare Copper+Poly) | 100% |
| 2 | Braid | Bare Copper (BC) | 50% |
| Material | Nom. Diameter |
|---|---|
| PE - Polyethylene | 10.3 mm |
| Table Notes: | According to European Standard EN 50290-2-20 |
| Regularity of Impedance: | Min. 46 dB |
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 1 dB/100m |
| 50 MHz | 3.3 dB/100m |
| 100 MHz | 4.7 dB/100m |
| 200 MHz | 6.7 dB/100m |
| 400 MHz | 9.8 dB/100m |
| 600 MHz | 12.2 dB/100m |
| 800 MHz | 14.4 dB/100m |
| 1000 MHz | 16.3 dB/100m |
| 1350 MHz | 19.3 dB/100m |
| 1750 MHz | 22.5 dB/100m |
| 2150 MHz | 25.4 dB/100m |
| 2400 MHz | 27.1 dB/100m |
| 5000 MHz | 42.4 dB/100m |
| 10000 MHz | 66.4 dB/100m |
| Table Notes: | Max. attenuation 10% higher |
| Max. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 4.5 Ohm/km (1.4 Ohm/1000ft) | 12 Ohm/km (3.7 Ohm/1000ft) | 80 pF/m (24 pF/ft) | 50 Ohm | 83% |
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 100 dB |
| Operating | Installation | Storage |
|---|---|---|
| -40°C To +70°C | -5°C To +50°C | -40°C To +70°C |
| Stationary Min. |
|---|
| 100 mm (3.9 in) |
| Bulk Cable Weight: | 109 kg/km |
| Environmental Suitability: | Outdoor |
| ISO/IEC Compliance: | IEC 61196 |
| European Directive Compliance: | EU CE Mark |
| Update and Revision: | Revision Number: 0.194 Revision Date: 04-08-2022 |
