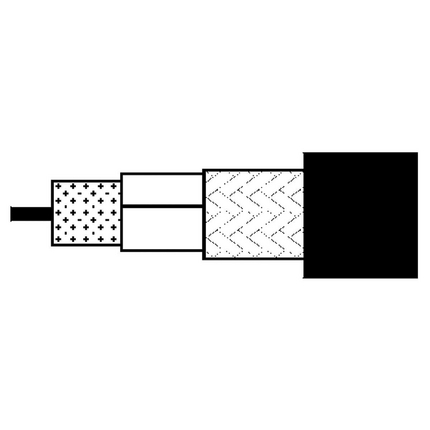

(109)50 Ohm Wireless Transmission Coax, H1000B, RG8, 10 AWG Solid Bare Copper Conductor, PE Insulation, Copper foil + 85% Bare Copper Braid Shield, PE Jacket
| Suitable Applications: | Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
| RG Type: | 8 |
| No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|
| 1 | 10 AWG | Solid | 2.62 mm | BC - Bare Copper |
| Element | Material | Nom. Insulation Diameter |
|---|---|---|
| Insulated Conductor | PE - Polyethylene (Foam) | 7.15 mm (0.281 in) |
| Table Notes: | Centricity min. 85% |
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Bi-Laminate (Bare Copper+Poly) | 100% |
| 2 | Braid | Bare Copper (BC) | 85% |
| Material | Nom. Diameter |
|---|---|
| PE - Polyethylene | 10.3 mm |
| Table Notes: | According to European Standard EN 50290-2-20 |
| Regularity of Impedance: | Min. 46 dB |
| Frequency | Nom. Attenuation |
|---|---|
| 1000 MHz | 13.4 dB/100m |
| 2000 MHz | 19.7 dB/100m |
| 2500 MHz | 22.6 dB/100m |
| 2750 MHz | 23.8 dB/100m |
| 3000 MHz | 25.2 dB/100m |
| 4000 MHz | 29.7 dB/100m |
| Table Notes: | Max. attenuation 10% higher |
| Max. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 3.5 Ohm/km (1.1 Ohm/1000ft) | 4.5 Ohm/km (1.4 Ohm/1000ft) | 80 pF/m (24 pF/ft) | 50 Ohm | 83% |
| Frequency | Min. Screening Attenuation |
|---|---|
| 30 - 1000 MHz | 90 dB |
| Operating | Installation | Storage |
|---|---|---|
| -60°C To +70°C | -5°C To +50°C | -60°C To +70°C |
| Stationary Min. |
|---|
| 100 mm (3.9 in) |
| Environmental Suitability: | Outdoor |
| ISO/IEC Compliance: | IEC 61196 |
| European Directive Compliance: | EU CE Mark |
| Update and Revision: | Revision Number: 0.194 Revision Date: 04-08-2022 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| H1000C3.00500 | Black | Reel | 500 m | 8719605085313 |
