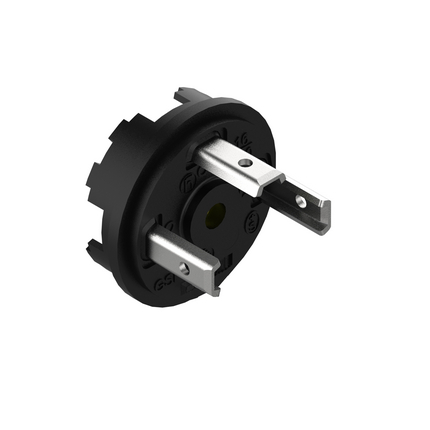

GSP-U 3000 0PE - GSP-U DIN standard receptacle with connection thread, solder contacts and no PE: Form A, 3-pin, solder type; 50 V AC/DC, 16 A

GSP-U DIN standard receptacle with connection thread, solder contacts and no PE: Form A, 3-pin, solder type; 50 V AC/DC, 16 A

Technical Data

Product Family: Valve Connectors
Product Sub Family: GSP-U
Brand: Hirschmann
Connector Type: Receptacle
Connector Sub Type: Circular receptacle with connection thread, solder contacts and no PE
Type of Contact / Gender: Male
Connector Design: Straight
Number of Pins: 3
Coding: A
Shielding: Unshielded
Attachment Type: Central Screw
Rated Impulse Voltage: 4.0 kV
Operating Voltage: 50 V AC/DC
Rated Current: 16 A
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 50
Type of Connection: Solder
Conductor Cross Section: 0.08 - 1.5 mm²
Ambient Temperature (Operation): -40°C - +125°C
Protection Degree / IP Rating: IP65
Design Standard: DIN EN 175301-803-A, ISO 4400
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material: CuZn
Contact Plating: Cu/Au
Contact Bearer Material: PA GF
Contact Bearer Color: black
Flammability Class (Contact Bearer): UL 94 V-0
Housing Color: black

Approvals

VDE: yes
SEV: yes

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree / IP Rating Note: only if mounted and locked in combination with Hirschmann / Lumberg Automation connector
Note Derating: Notice derating
Note: Do not connect or disconnect under load.
Variants
Item #Item Description
832954500GSP-U 3000 0PE LO AU
