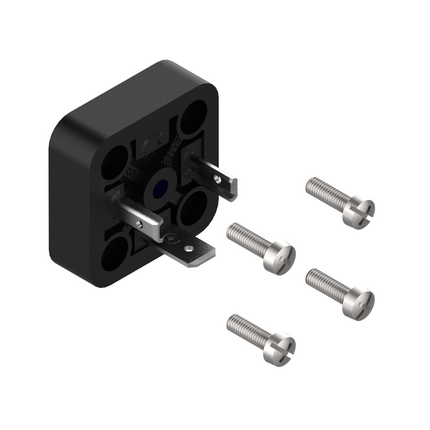

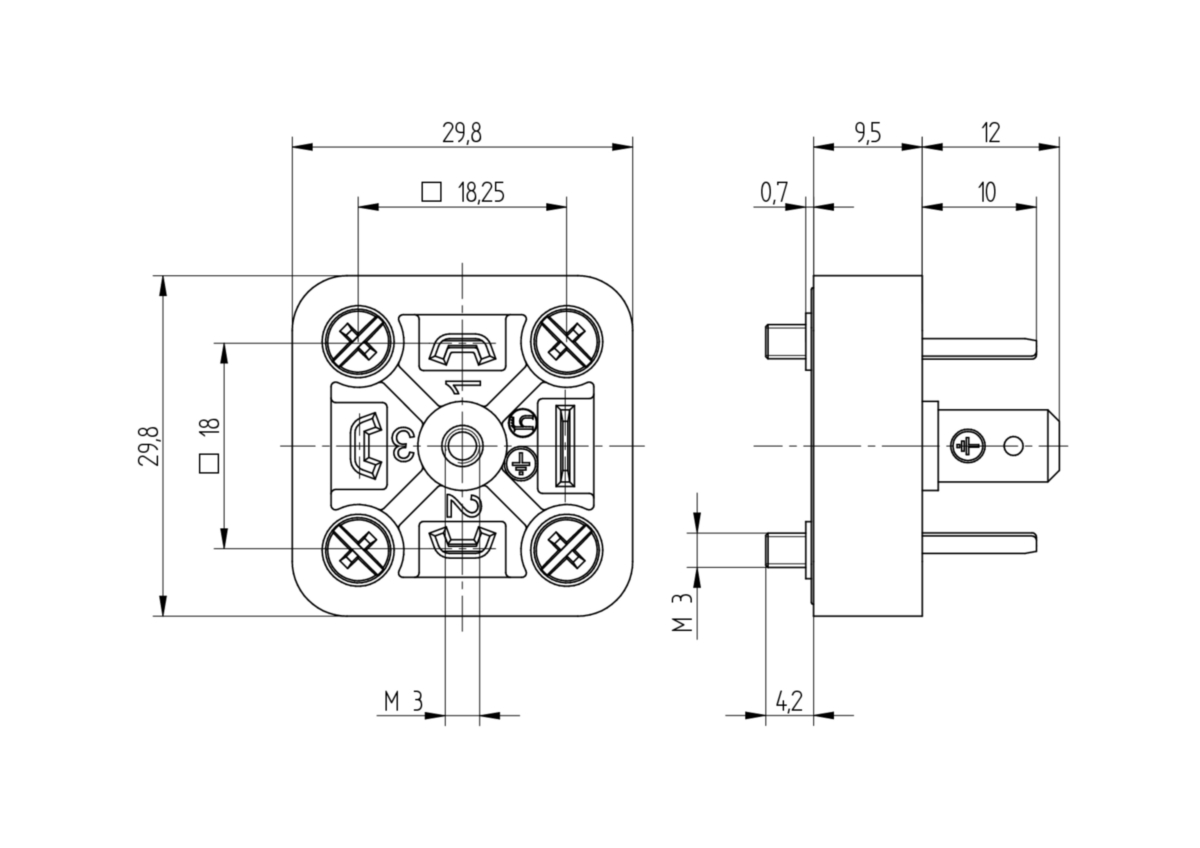

GSA-U 2000 N - GSA-U - Male Receptacle Surface Mount, Form A, Contacts: 2+PE, solder type, 400 V | 16 A; cURus 1977





175301-803-A (DIN 43650-A): Male Receptacle Surface Mount, Form A, Contacts: 2+PE, solder type, 400 V | 16 A; cURus 1977

Technical Data

Product Family: Valve Connectors
Side 1 Product Sub Family: GSA-U
Brand: Hirschmann
Connector Type: Receptacle
Connector Sub Type: Rectangular molded receptacle with solder contacts
Side 1 Type of Contact/Gender: Male
Connector Design: Straight
Number of Pins: 2+PE
Coding, Side 1: A
Shielding Type: Unshielded

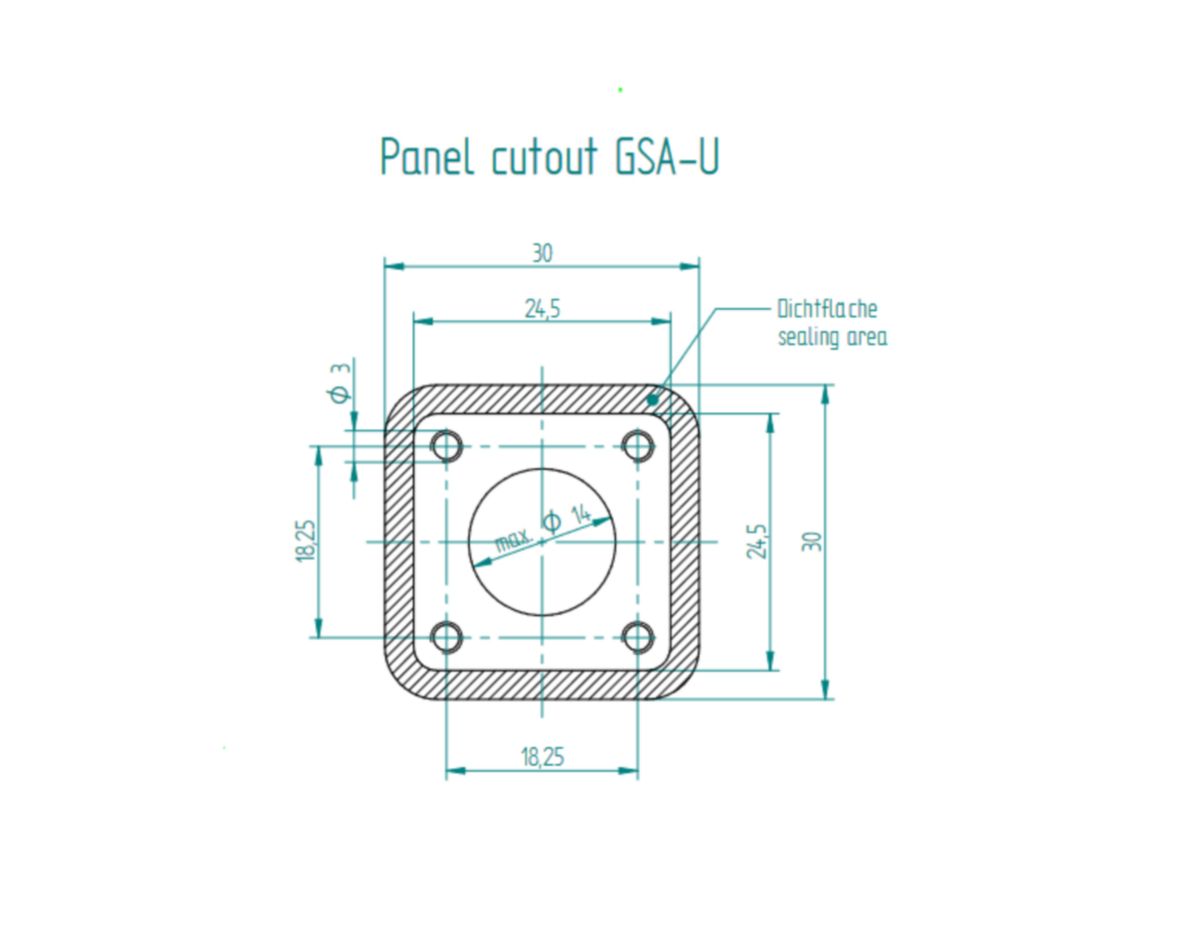

Attachment Type: 4 screws M 3 x 10
Rated Voltage (UL): 300 V
Rated Impulse Voltage: 4.0 kV
Operating Voltage: 400 V AC/DC
Current Rating: 16 A
Rated Current (UL)*: 15 A
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 50
Type of Connection: Solder
Cross Section: 0.08 - 1.5 mm²
Ambient Temperature (Operation)*: -40 °C - +125 °C
Operating Temperature (UL): max. + 90 °C
Protection Degree / IP Rating**: IP65 / IP67
Design Standard: DIN EN 175301-803-A, ISO 4400
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material: CuZn
Side 1 Contact Plating: Cu/Sn
Contact Bearer Material: PA GF
Contact Bearer Color: black
Flammability Class (Contact Bearer): UL 94 HB
Housing Color: black

Additional Technical Data

Fastening torque (mounting screw): (50-60) Ncm
Mount Type: M3 (2x)
Accessories to Order Separately: (NBR) flat gasket GSA 200-4, Part Number. 730843002; (EPDM) flat gasket GSA 200-7,Part Number. 730268003

Approvals

UL-File: E95522
UL: UL 1977; UR
VDE: yes
SEV: yes

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Note Derating: Notice derating
Protection Degree / IP Rating Note: *IP Rating test performed by Belden with Belden Connectors only
Note: Do not connect or disconnect under load.
Variants
Item #Item DescriptionPackaging
933378100GSA-U 2000 N LOS - Bulk Packaging, 200 pieces per carton, unassembled
GSA_U_2+PE_Solder.zip
No accessories are available for this product
