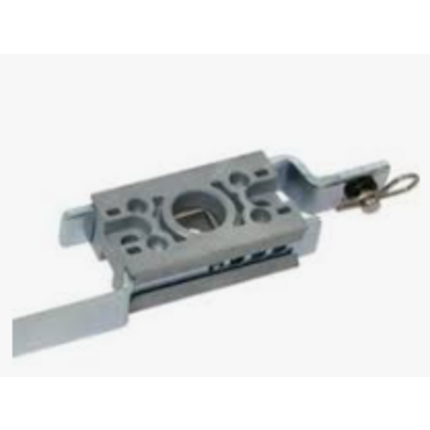

(109)Gearbox for E-Lock installation on double doors of END, ESN and ESH Cabinets
| Suitable Applications: | To be used for installation of electronic locks (Accss control System) on double doors of END, ESN and ESH cabinets. 1 item for each double door required. Always use in combination of EDAD201x installation kit E-locks E-Series. Double doors can only be retro-fitted with E-locks for cabinets manufactured later than June 2018. (Not suitable for EDL cabinets) |
| Environmental Space: | Indoor |
| Material: | Steel |
| Color: | Metal |
| EU Directive 2011/65/EU (RoHS 2): | Compliant |
| Included Parts: | Gearbox |
| Packaging: | Individually packaged |
| Item # | Application | Colour |
|---|---|---|
| EDAD2020 | E-Series Cabinets | Metal |
| Update and Revision: | Revision Number: 0.57 Revision Date: 01-31-2024 |
