GDM21FD-L14-10D - GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), transparent housing, screw type, 1/2" NPTF; with yellow LED, 24 V AC/DC, 10 A

GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), transparent housing, screw type, 1/2" NPTF; with yellow LED, 24 V AC/DC, 10 A

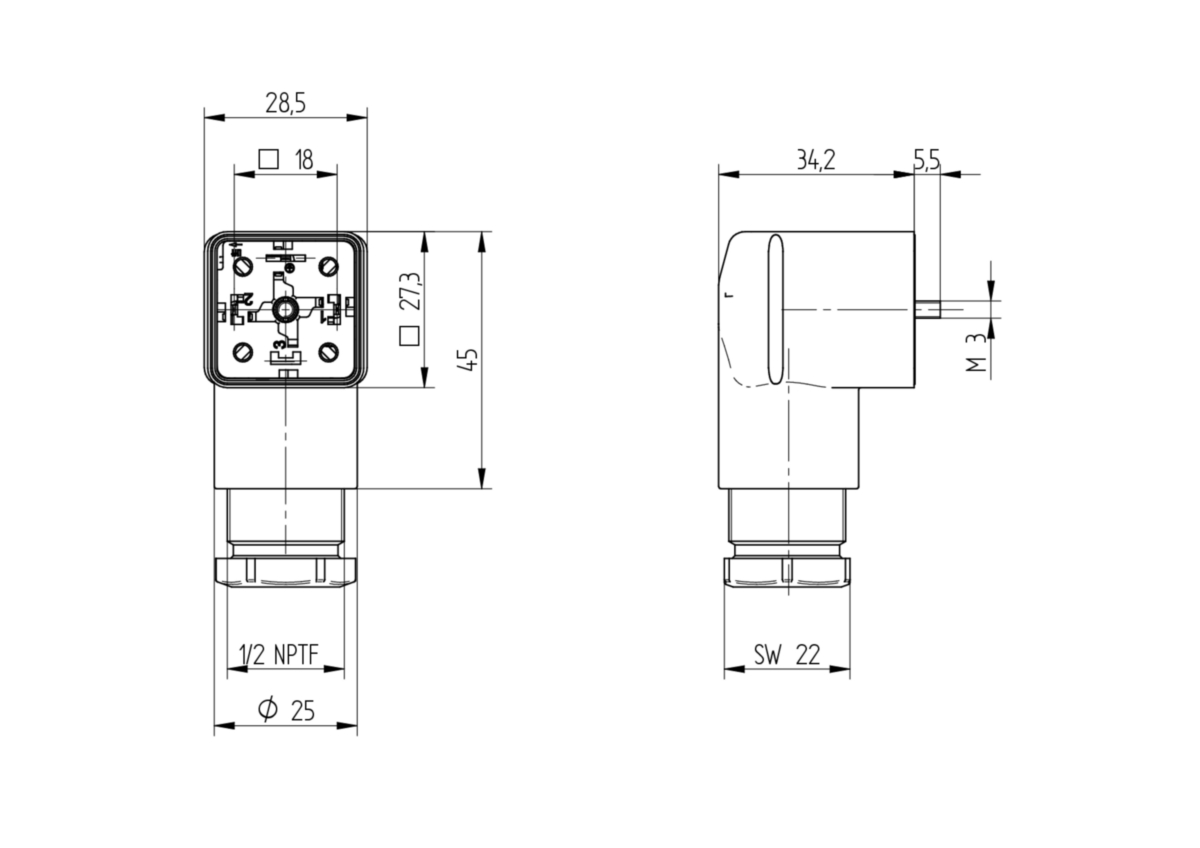

Technical Data

Family: Valve Connectors
Sub Family: GDM Standard
Brand: Hirschmann
Connector Type: Field attachable
Type of contact: Female
Connector Design: Angled
Number of contacts: 2+PE (PE across cable outlet)
Coding: A
Shielding: Unshielded
Attachment Type: Central Screw
Rated impulse voltage: 4.0 kV (PCBA 2.0 kV)
Operating voltage: 24 V AC/DC
Rated current: 10 A
Contact resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating cycles: ≤ 50
Type of connection: Screw
Cable gland: 1/2" NPTF
Conductor Cross Section: 0.25 - 1.5 mm²
Suitable cables: Ø 8 - 13.5 mm
Operating temperature range: -25°C - +90°C
Protection Degree/IP Rating: IP65
Standard: DIN EN 175301-803-A, ISO 4400
Pollution degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage distance: DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)

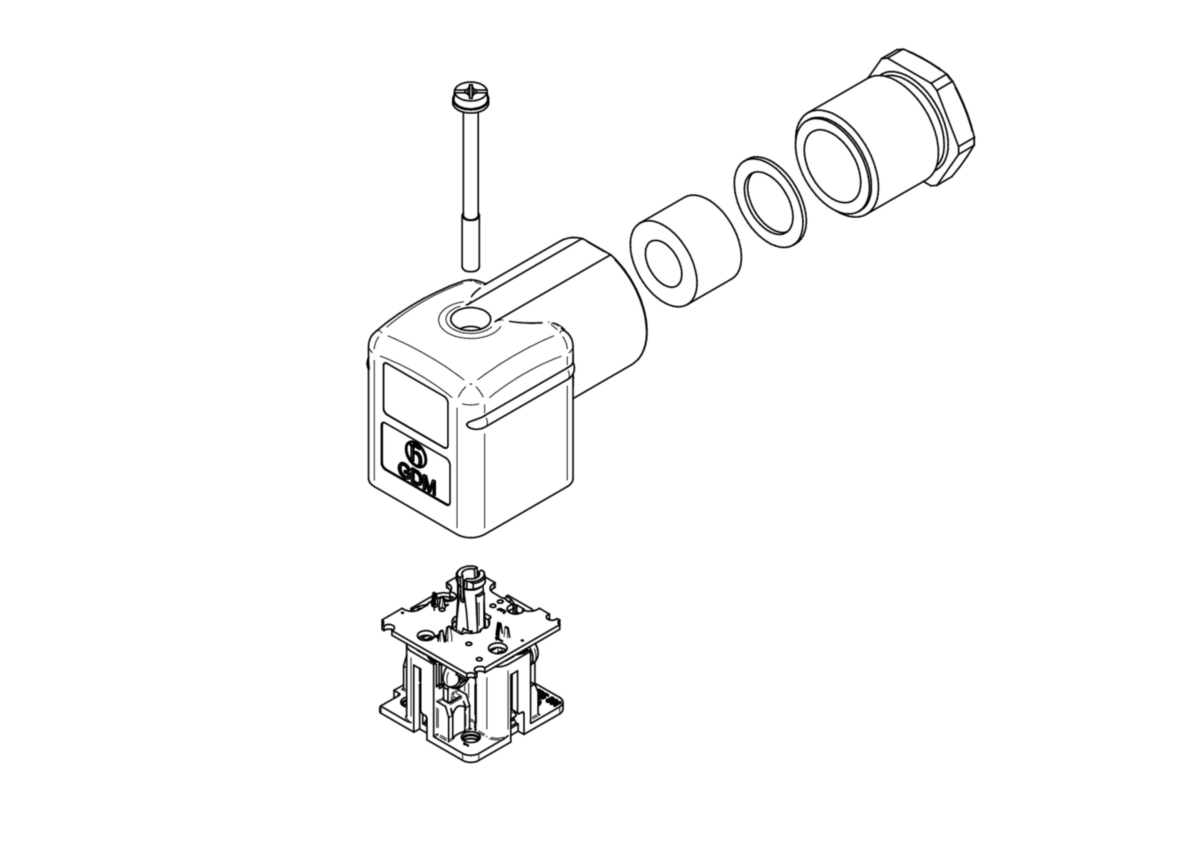

Materials

Contact: CuZn
Contact plating: Cu/Sn
Contact bearer material: PA GF
Contact bearer color: black
Flammability Class (Contact Bearer): UL 94 HB
Housing material: PA GF
Housing Color: Transparent
Flammability Class (Housing): UL 94 HB
Cable Gland Material: PA GF
Cable Gland Gasket: NBR
color cable gland: Black
Attachment Material: Steel, Philips combi slot
Gasket(s): Sold separately

Circuitry

Function Indicator: Yellow LED

Additional Technical Data

Fastening torque: (40-50) Ncm for conductor size 0.25 - 1.5 mm²; (30-40) Ncm for conductor size 0.34 mm²; (25-30) Ncm for conductor size 0.25 mm²
Fastening torque (cable gland): (150-200) Ncm
Fastening Torque (Attachment): (50-60) Ncm

Approvals

VDE: yes
SEV: yes

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree/IP Rating Note: only if mounted and locked in combination with Hirschmann / Lumberg Automation connector
Rated Current Note: Notice derating
legend: Do not connect or disconnect under load.
Variants
Item #Item Description
15125GDM21FD-L14-10D
