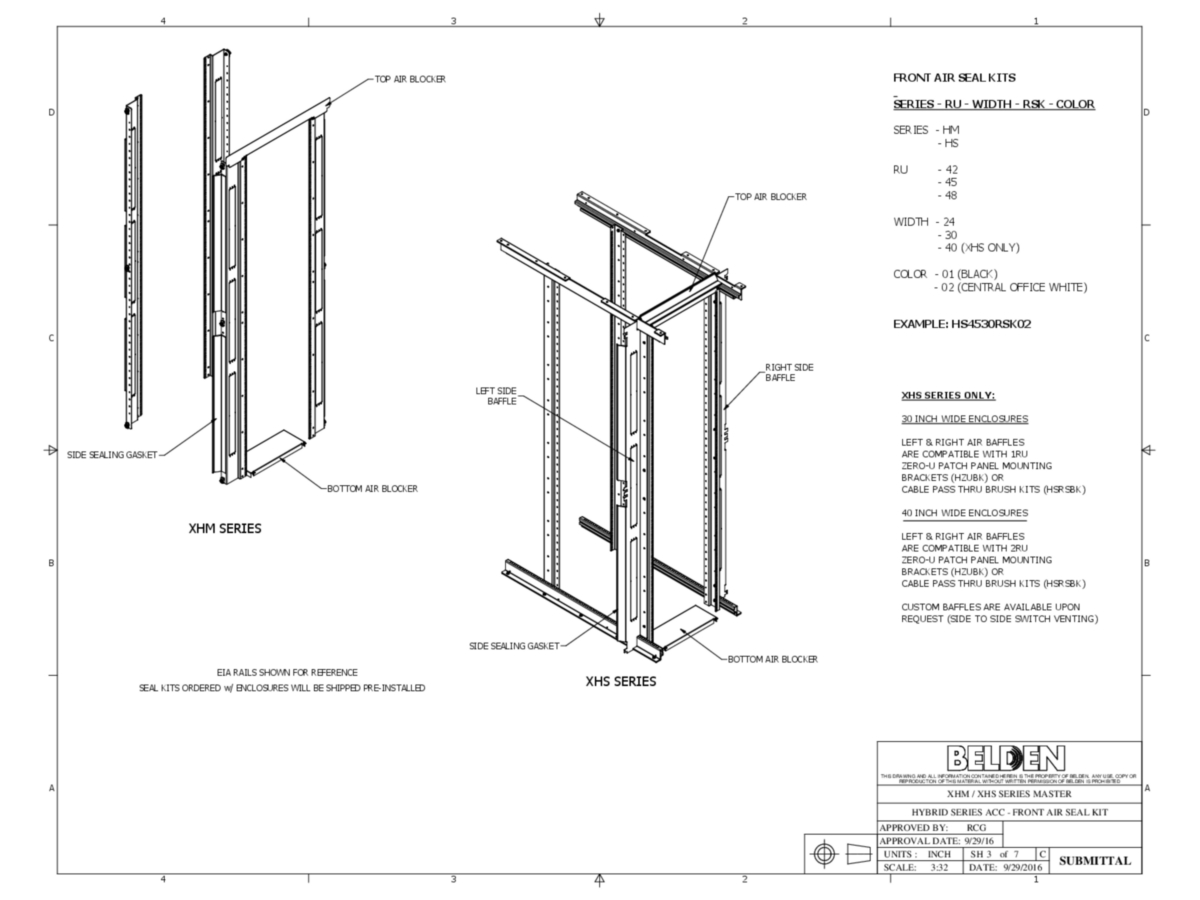

(109)Belden Cabinet Front Rail Air Seal Kit to be used with passive or active containment chimneys
| Benefits: | Enable physical separation of supply and return air for optimized hot/cold aisle and containment deployment |
| Features: | Rail Seal Kits are factory installed when ordered in conjunction with a cabinet |
| Environmental Space: | Indoor |
| Cabinet Application | Item Part # | Description | Color |
|---|---|---|---|
| XHM Series Cabinets | HM4224RSK01 | Front Rail Air Seal Kit, 42U x 24"W Cabinet | Black |
| XHM Series Cabinets | HM4224RSK02 | Front Rail Air Seal Kit, 42U x 24"W Cabinet | White |

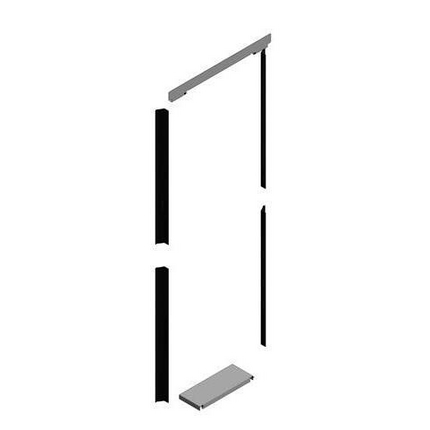

| XHM Series Cabinets | HM4230RSK01 | Front Rail Air Seal Kit, 42U x 30"W Cabinet | Black |
| XHM Series Cabinets | HM4230RSK02 | Front Rail Air Seal Kit, 42U x 30"W Cabinet | White |
| XHM Series Cabinets | HM4524RSK01 | Front Rail Air Seal Kit, 45U x 24"W Cabinet | Black |
| XHM Series Cabinets | HM4524RSK02 | Front Rail Air Seal Kit, 45U x 24"W Cabinet | White |
| XHM Series Cabinets | HM4530RSK01 | Front Rail Air Seal Kit, 45U x 30"W Cabinet | Black |
| XHM Series Cabinets | HM4530RSK02 | Front Rail Air Seal Kit, 45U x 30"W Cabinet | White |
| XHM Series Cabinets | HM4824RSK01 | Front Rail Air Seal Kit, 48U x 24"W Cabinet | Black |
| XHM Series Cabinets | HM4824RSK02 | Front Rail Air Seal Kit, 48U x 24"W Cabinet | White |
| XHM Series Cabinets | HM4830RSK01 | Front Rail Air Seal Kit, 48U x 30"W Cabinet | Black |
| XHM Series Cabinets | HM4830RSK02 | Front Rail Air Seal Kit, 48U x 30"W Cabinet | White |
| XHS Series Cabinets | HS4230RSK01 | Front Rail Air Seal Kit, 42U x 30"W Cabinet | Black |
| XHS Series Cabinets | HS4230RSK02 | Front Rail Air Seal Kit, 42U x 30"W Cabinet | White |
| XHS Series Cabinets | HS4240RSK01 | Front Rail Air Seal Kit, 42U x 40"W Cabinet | Black |
| XHS Series Cabinets | HS4240RSK02 | Front Rail Air Seal Kit, 42U x 40"W Cabinet | White |
| XHS Series Cabinets | HS4530RSK01 | Front Rail Air Seal Kit, 45U x 30"W Cabinet | Black |
| XHS Series Cabinets | HS4530RSK01 | Front Rail Air Seal Kit, 45U x 30"W Cabinet | White |
| XHS Series Cabinets | HS4540RSK01 | Front Rail Air Seal Kit, 45U x 40"W Cabinet | Black |
| XHS Series Cabinets | HS4540RSK01 | Front Rail Air Seal Kit, 45U x 40"W Cabinet | White |
| XHS Series Cabinets | HS4830RSK01 | Front Rail Air Seal Kit, 48U x 30"W Cabinet | Black |
| XHS Series Cabinets | HS4830RSK02 | Front Rail Air Seal Kit, 48U x 30"W Cabinet | White |
| XHS Series Cabinets | HS4840RSK01 | Front Rail Air Seal Kit, 48U x 40"W Cabinet | Black |
| XHS Series Cabinets | HS4840RSK02 | Front Rail Air Seal Kit, 48U x 40"W Cabinet | White |
| Update and Revision: | Revision Number: 0.28 Revision Date: 03-27-2024 |
