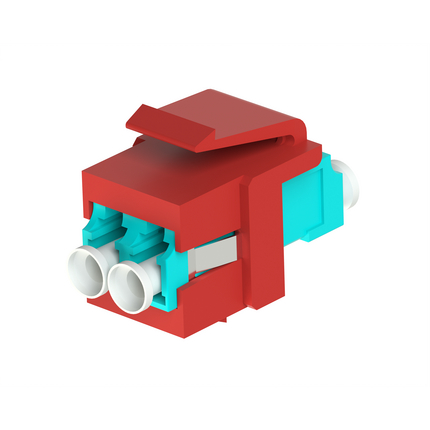

(4)KeyConnect Module LC Duplex Multimode OM3 w/o Internal Shutters, Aqua, Red Holder
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Overall Height: | 0.92 in |
| Overall Width: | 0.68 in |
| Depth: | 1.39 in |
| Packaging: | packaged 25 units per bag |
| Description | Material | Color | Type |
|---|---|---|---|
| Holder | Plastic - UL94V-0 | Red | KeyConnect |
| Adapter | Plastic - UL94V-0 | Aqua | Keyed LC Duplex |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | Compatible KeyConnect-style Faceplate and Patch Panel |
| Included Parts: | Dust Caps |
| Update and Revision: | Revision Number: 0.5 Revision Date: 11-11-2025 |
