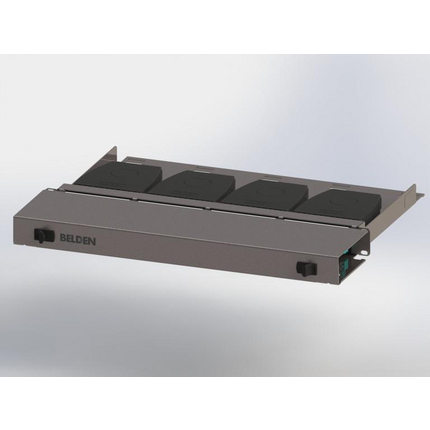

(109)FX Ultra HD 1U Standard Shelf, 4 slots, Empty. Available in Titanium or Black finish.
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 3.706 kg |
| Height: | 44.450 m |
| Width: | 482.600 mm |
| Depth: | 393.700 |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material |
|---|---|
| Panel | Steel/Aluminum |
| Door | Aluminum |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Screws (12-24); Screws (10-32); Velcro Straps; Identification Labels |
| Item # | Color | UPC |
|---|---|---|
| AX105673 | Black | 611589153195 |
| Packaging: | Individually packaged in a cardboard box |
| Notes: | For more information, please refer to our web site at http://www.belden.com. Installation Guide: PX105539. |
| Update and Revision: | Revision Number: 0.88 Revision Date: 11-09-2022 |
