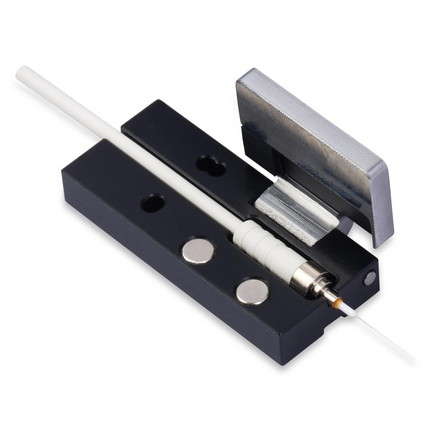

(4)FiberExpress Fusion Splice Holder for Family-1
| Environmental Space: | Indoor |
| Weight: | 0.030 kg |
| Height: | 0.350 m |
| Width: | 0.700 |
| Termination Style: | Splice-On |
| Tool Compatibility: | AFL/Fujikura Splicer FSM-60S and FSM-70S, Fiber Fox Splicer Mini 4S, Mini 5C and Mini 6S, Sumitomo Splicer Quantum Q101-CA |
| Item # | Color | Packaging | UPC |
|---|---|---|---|
| FXFSSHFM1 | Black | Single Pack | 611589224697 |
| Packaging: | Single Pack |
| Notes: | For additional fusion splicer compatibility information, refer to document AEN-1701 available at www.belden.com/Splice-on |
| Update and Revision: | Revision Number: 0.297 Revision Date: 05-05-2025 |
