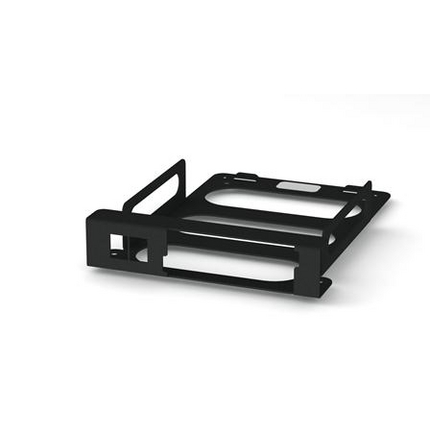

(4)FiberExpress Zero U Single Bracket - Single Holder With Magnets, Black
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 1 lbs |
| Overall Height: | 1.76 in |
| Overall Width: | 7.5 in |
| Overall Length: | 10 in |
| Max Capacity: | 18 FX UHD LC Duplex / MPO Connectors |
| Termination Front Connection Durability: | Static FXU HD / 1inch Pullout FXU |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material |
|---|---|
| Panel | Steel |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Tie Wraps |
| Packaging: | Individually packaged in a cardboard box |
| Notes: | For more information, please refer to our web site at http://www.belden.com. |
| Update and Revision: | Revision Number: 0.255 Revision Date: 03-30-2026 |
