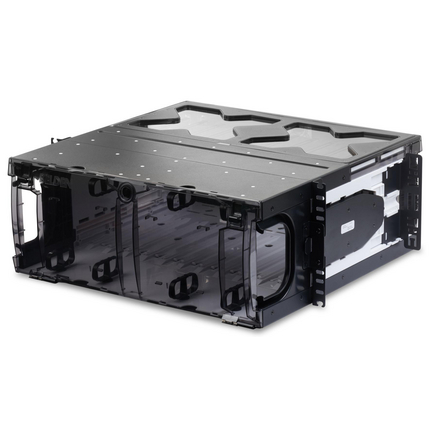

(109)FX ECX 4U Patch Panel Housing. Holds 12 ECX adapter frames or cassettes.
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 11.980 lbs |
| Height: | 6.860 in |
| Width: | 19.000 in |
| Depth: | 17.570 in |
| Max Capacity: | Holds 12 ECX adapter frames or cassettes |
| Termination Type: | Front Sliding Drawer |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material |
|---|---|
| Housing | Steel/Aluminum |
| Housing | PC/ABS |
| Housing | Polycarbonate |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | Management clips (16X); Internal strain relief (2X); Intermediate strain relief (2X); Label card (2X); Blank frames (12X); Door lock opening cap (2X). Hardware kit contains: External strain relief (2X); cable tie 4in (12X); cable tie 7 1/2 in (4X); Velcro cable tie 8"in (8X); #12-24 machine screw Phillips (4X); #10-32 machine screw Phillips (4X) |
| Item # | Color | UPC |
|---|---|---|
| ECX-04U | Black | 611589218825 |
| Packaging: | Individually packaged in a cardboard box. |
| Notes: | For more information, please refer to our web site at http://www.belden.com. Installation Guide:PX106481. |
| Update and Revision: | Revision Number: 0.202 Revision Date: 01-03-2024 |
