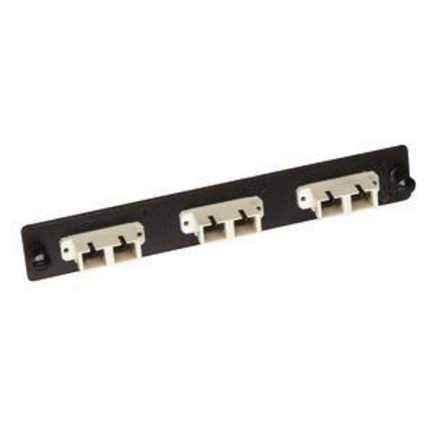

(109)FiberExpress Adapter Strip, loaded 6 SC Duplex Singlemode Adapters Black
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room |
| Weight: | 0.093 kg |
| Height: | 1 m |
| Width: | 6.5 |
| Length: | 1.08 ft |
| Max Capacity: | 12 Fibers, 6 SC Duplex Singlemode Adapter |
| Front Connection: | Flush |
| Termination Style: | Front |
| Termination Type: | Front and Rear |
| Type of Connection: | Mated Connection |
| Cable/Connector Retention: | 11.250 lbs. |
| Connector/Hardware Retention: | 11.25 lbs |
| Durabilities@Termination1: | 500 cycles |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +75°C |
| Element | Description | Color |
|---|---|---|
| Plastic - UL94V-0 | Connector Body | Blue |
| SC | Connectory Body Type | |
| Zirconia-Ceramic | Adapter Sleve |
| Included Parts: | Dust Caps |
| Item # | Port Count | Adapter Color |
|---|---|---|
| AX101409 | 6 Port | Blue |
| Packaging: | Individually packaged in a plastic bag. Standard pack of 30 units. |
| Notes: | For additional information about this product, visit our web site at http://www.belden.com. |
| Update and Revision: | Revision Number: 0.55 Revision Date: 11-09-2022 |
