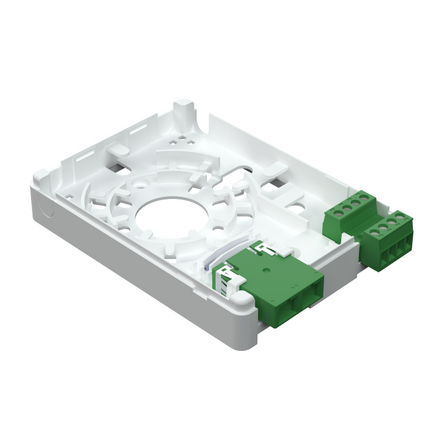

(4)DuetConnect HTB 4C/2F SC/APC Duplex OS2 Pigtails, Adapters with Shutter, White
| Overall Height: | 0.92 in |
| Overall Width: | 3.54 in |
| Depth: | 5.23 in |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a box. |
| Weight: | 0.158 lbs |
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleve | Zirconia-Ceramic | ||
| Front Fiber Connector Body | Plastic - UL94V-0 | Green | SC/APC Duplex |
| Box Assembly | Plastic - UL94V-0 | White | |
| Front Copper Connector Body | Plastic - UL94V-0 | Green |
| Max Capacity: | 2 Fibers, 1 SC/APC Duplex Adapter |
| Installation Temperature Range: | -10°C to 60°C |
| Storage Temperature Range: | -10°C to 75°C |
| Width | Height | Depth |
|---|---|---|
| 3.54 in | 0.92 in | 5.23 in |
| UL Rating: | Tested to UL2043 for Plenum spaces |
| Environmental Space: | Indoor |
| Included Parts: | (2) 900µm Pigtails, (4) Slim Splice Protection sleeve 25mm, (2) Self-locking cable tie /4.0, (2) TRI-COMBO PAN HD 6-32 MACH. SCREW 1.25 LG. |
| Update and Revision: | Revision Number: 0.19 Revision Date: 02-12-2025 |
