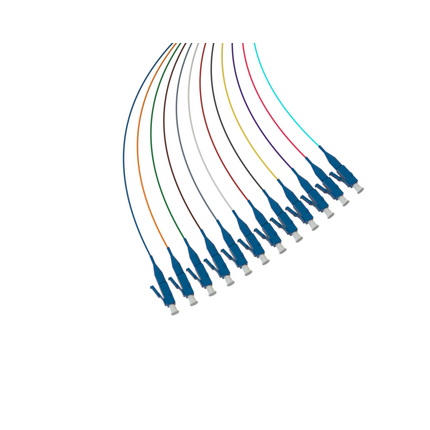

(4)FX FIELD-TERMINATION PIGTAIL, OS2, LC SIMPLEX, TIGHT BUFFER 900 UM, COLOR-CODED 12-FIBER, 3M
| Suitable Applications: | Data Centers, Main Equipment Rooms and Telecommunications Rooms |
| Fiber Core Diameter: | 9 µm |
| Fiber Count: | 12 |
| Fiber Color Code: | TIA-598-D |
| Description | Type | Housing Material | Ferrule | Boot Material | Boot Color |
|---|---|---|---|---|---|
| Connector A (Inside End) | LC Simplex | Plastic | Zirconia Ceramic | Rubber | Blue |
| Cable Nominal OD |
|---|
| 0.9 mm |
| Overall Assembly Length | Packaging |
|---|---|
| 3 meters | Individually packaged in a plastic bag. |
| Range | Tolerance |
|---|---|
| 0 to 2 meters | +0.2 / -0 meter |
| 2.1 to 5 meters | +0.3 / -0 meter |
| 5.1 to 20 meters | +0.4 / -0 meter |
| over 20 meters | +1.3 / -0 meter |
| Armor Type and Material: | No Armor |
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connector A (Inside End) | LC Simplex | 0.35 dB | -55 dB |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -10°C to +60°C |
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | N/A |
| UL Rating: | Non Rated |
| TIA/EIA Compliance: | TIA/EIA 568.3 |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2) |
| MII Order #39 (China RoHS): | EUP 50 |
| Other Standard Compliance(s): | ACMA |
| Related Parts: | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames |
| Update and Revision: | Revision Number: 0.10 Revision Date: 12-12-2025 |
