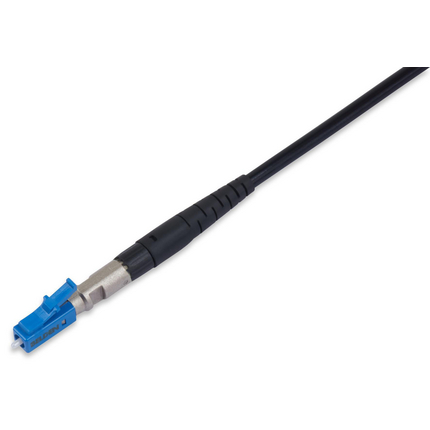

(4)FX Fusion Splice-On Connector, OS2, LC Simplex, 2mm, Blue Housing
| Environmental Space: | Indoor, Outdoor |
| Suitable Applications: | Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units). |
| Fiber Type |
|---|
| OS2 |
| Weight: | 0.021 lbs |
| Length: | 153.97 mm |
| Maximum Insertion Loss: | 0.30 dB |
| Minimum Reflectance: | -55 dB |
| Minimum Reflectance @ 1550nm: | -55 dB |
| Termination Style: | Splice-On |
| Description | Material | Color |
|---|---|---|
| Boot | Rubber | Black |
| Protective Ferrule Cap | Plastic | White |
| Connector Front Housing | Plastic | Blue |
| Connector Rear Housing | Nickel plated zinc alloy diecast | Metal |
| Ferrule | Zirconia-Ceramic | White |
| TIA/EIA Compliance: | TIA 568.3 |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 2 mm boot, protective ferrule cap, splice protection sleeve |
| Related Parts: | FX Pigtails. |
| Packaging: | Single Pack |
| Update and Revision: | Revision Number: 0.21 Revision Date: 08-13-2025 |
