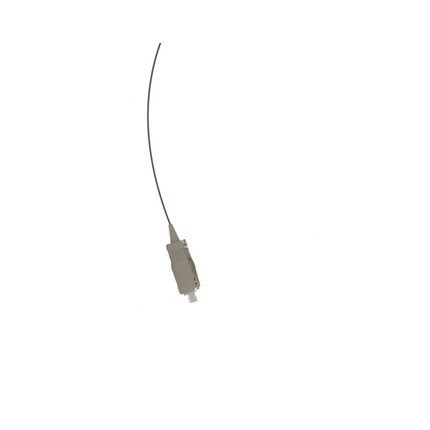

(4)FX FIELD-TERMINATION PIGTAIL, OM1, SC SIMPLEX, TIGHT BUFFER 900 UM, SINGLE-ENDED, 2M, GRAY BUFFER, BEIGE CONNECTOR
| Suitable Applications: | Data Centers, Main Equipment Rooms and Telecommunications Rooms |
| Fiber Type: | OM1 |
| Fiber Core Diameter: | 62.5 µm |
| Fiber Count: | 01 |
| Fiber Color Code: | TIA-598-D |
| Description | Type | Housing Material | Housing Color | Ferrule | Boot Material | Boot Color |
|---|---|---|---|---|---|---|
| Connector A (Inside End) | SC Simplex | Plastic | Beige | Zirconia Ceramic | Rubber | Beige |
| Cable Nominal OD |
|---|
| 0.9 mm |
| Overall Assembly Length | Packaging |
|---|---|
| 2 meters | Individually packaged in a plastic bag. |
| Range | Tolerance |
|---|---|
| 0 to 2 meters | +0.2 / -0 meter |
| 2.1 to 4.9 meters | +0.3 / -0 meter |
| 5 to 40 meters | +0.4 / -0 meter |
| over 40 meters | +1.0% / -0% |
| Armor Type and Material: | No Armor |
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connector A (Inside End) | SC Simplex | 0.25 dB | -30 dB |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -10°C To +60°C |
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | N/A |
| UL Rating: | Non Rated |
| TIA/EIA Compliance: | TIA/EIA 568.3 |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2) |
| MII Order #39 (China RoHS): | EUP 50 |
| Other Standard Compliance(s): | ACMA |
| Related Parts: | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames |
| Update and Revision: | Revision Number: 0.88 Revision Date: 02-27-2026 |
