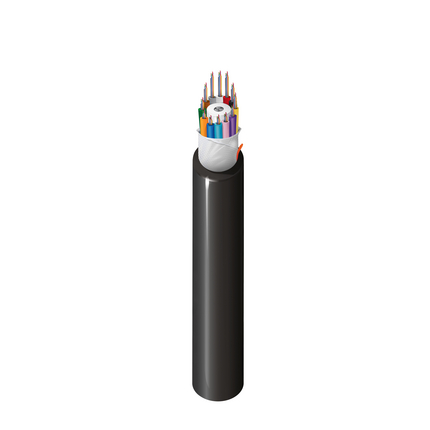

FSSL144NG - Outdoor Loose Tube OS2 144 Fibers


FX Outdoor Loose Tube OS2 144 Fibers OSP Sub-Units(12F) Gel Black

Part Number: FSSL144NG
Construction Type: Multi Loose Tube

Product Overview

Print Legend: BELDEN 144xOS2 OUTDOOR LOOSE TUBE CABLE FSSL144NG(-PLANT ID) (UL) TYPE OFN C(UL) OFN---ROHS (LOT NUMBER) (MMYYYY DATE CODE) (SEQUENTIAL MATERIAL)
Environmental Space: Outdoor
Suitable Applications: Outdoor

Construction

Fiber Cable Construction
Fiber TypeFiber Count
OS2144
Fiber Color Coding: Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua
Buffer Specification
Buffer Material
Loose tube - Gel-filled
Central Strength Member: Upjacketed GRP
Cable Core Water Blocking: Waterblocking Tape
Bulk Cable Weight: 155 lbs/1000ft
Weight: 155 kg

SubUnit Specifications

Number of Active Subunits: 12
Number of Subunit Positions: 5
Fibers Per Subunit: 12
SubUnit Diameter: 0.110 in (2.8 mm)
SubUnit Waterblocking: Gel Filled

Jacket Specifications

Number of Jackets: Single Jacket
Material@InnerJacket1: PE
Outer Jacket Material
MaterialNominal Diameter
Thermoplastic0.58 in (14.7 mm)
Outer Jacket Color: Black
Number of Outer Jacket Ripcords: 2
OuterJacket1, Nominal Diameter: .68 (17.3)

Optical Characteristics

Effective Modal Bandwidth (EMB): 22/-
Fiber Core Diameter: 8.2/125μm
Max Attenuation at 1310 nm: 0.4 dB/km
Max Attenuation at 1550 nm: 0.3 dB/km
Wavelength: 1310 nm / 1550 nm
10 Gigabit Ethernet Performance: 10,000 m / 40,000 m
1 Gigabit Ethernet Performance: 5,000 m / -

Mechanical Characteristics

Crush Resistance: 220
Mechanical Tests
DescriptionRequirement/Value
Cable Min. Bend Radius Installation (Short Term)20x Cable OD
Cable Min. Bend Radius Operation (Long Term)15x Cable OD
Cable Max. Tensile Strength Installation (Short Term)135 N (600 lbf)
Cable Max. Tensile Strength Operation (Long Term)40 N (180 lbf)
Cable Impact Resistance4.4 N/cm

Temperature Range

Operating Temp Range: -40C to +70C
Installation Temp Range: -30C to +70C
Storage Temp Range: -40C to +75C

Standards

UL Rating/Flame Test: OSP
Telecommunications Standards: ANSI/ICEA S-87-640
RoHS: Yes

History

Variants
Item #ColorUPC
FSSL144NGBlack612825372622
Update and Revision: Revision Number: 0.64 Revision Date: 07-11-2019
