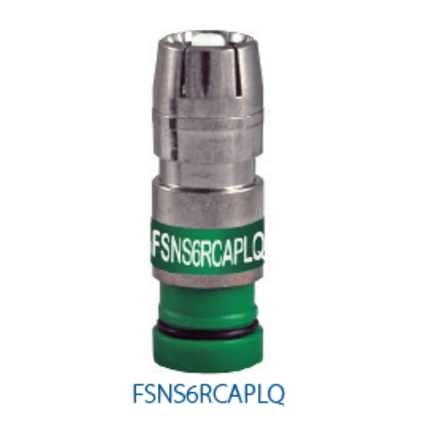

FSNS6RCAPLQ-25 - ProSNS RG-6 Plenum RCA Coax Compression Connector


ProSNS RG6 Plenum RCA quad shield connector, non-blind entry, polymer compression sleeve for easy insertion & lowest possible tool compression force. 25 per Pack

Product Overview

Suitable Applications: CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging: 25 Pack
Number of Pieces: 1

Connectors

Materials
Material
Tin Plated Brass
Nickel plated Brass
Gold Plated

Electrical Characteristics

Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz]
≥ -20 dB up to 208 MHz typical
Electrical Characteristics Notes: Salt Fog: Passes 1,000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB typical (60% bonded foil)

Temperature Range

Operating Temperature Range: -40 ºF (-40 ºC) to 140 ºF (60 ºC)

Mechanical Characteristics

Footprint/Type: Coax
Connector Interface Type: RCA
Gender: Male - plug
Connector Series Name: ProSNS
Color Band: Green
Locking: No
Tool Compatibility: CPLCCT-SLMR, CPSNSCT-596 (compression), PSA59/6 (strip)
Termination Type: Compression
Cable Center Conductor Diameter Limits: .0399 - .0418 inch
Cable Dielectric Diameter Limits: .166 - .193 inch
Cable Outer Jacket Diameter Limits: .230 - .281 inch
Cable Insertion Force: 20 lbs. maximum
Cable Retention Force: 40 lbs. minimum per SCTE IPS SP-401

Standards

RG Type: 6
Series Type: 6

Applicable Environmental and Other Programs

EU CE Mark: Yes

Related Part Numbers

Variants
Item #ColorUPC
FSNS6RCAPLQ-25No Color845671002676
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

History

Update and Revision: Revision Number: 0.45 Revision Date: 12-30-2022
