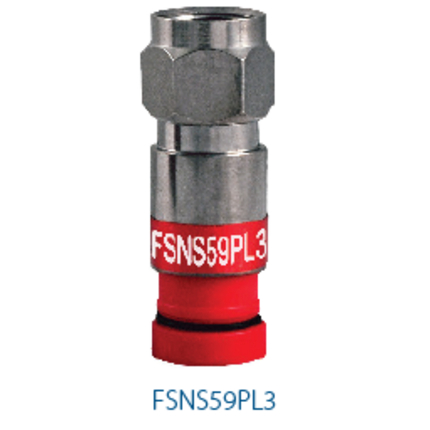

FSNS59PL3-25 - ProSNS RG-59 Universal Plenum "F" Coax Compression Connector


ProSNS RG59 Plenum Universal "F" connector, non-blind entry with polymer compression sleeve for easy insertion & lowest possible tool compression force. 25 per Pack

Product Overview

Suitable Applications: CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging: 25 Pack
Number of Pieces: 1

Connectors

Materials
Material
Nickel plated Brass
Gold Plated

Electrical Characteristics

Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz]
DC-1 GHz 31 dB Return Loss 1.05 VSWR
DC-2 GHz 26 dB Return Loss 1.09 VSWR
DC-3 GHz 21 dB Return Loss 1.18 VSWR
Electrical Characteristics Notes: Cable Pullout Force Exceeds 40 Lbs

Mechanical Characteristics

Footprint/Type: Coax
Connector Interface Type: F
Gender: Male - plug
Connector Series Name: ProSNS
Color Band: Red
Locking: No
Tool Compatibility: CPLCCT-SLMR, CPSNSCT-596 (compression), PSA59/6 (strip)
Termination Type: Compression
Cable Center Conductor Diameter Limits: .021 - .024 inch
Cable Dielectric Diameter Limits: .130 - .137 inch
Cable Outer Jacket Diameter Limits: .190 - .220 inch

Standards

RG Type: 59
Series Type: 59

Applicable Environmental and Other Programs

EU CE Mark: Yes

Related Part Numbers

Variants
Item #ColorUPC
FSNS59PL3-25No Color845671003963
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

History

Update and Revision: Revision Number: 0.47 Revision Date: 03-04-2023
