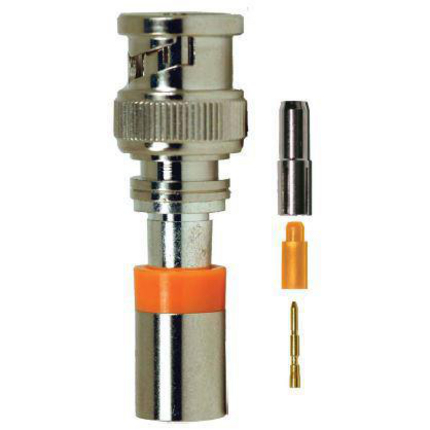

FSBNC1RGB - FS Series Mini BNC Coax Compression Connector 24-26 AWG


FS Series Mini (24-26 AWG) multi-piece BNC connector fits most stranded center conductor coaxial cables. Split ferrule design provides proper fit to mini coax cables with sliding pin to elimiate blind entry.

Product Overview

Suitable Applications: CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Conductor Size: 24 AWG
Packaging: 25 Pack
Number of Pieces: 1

Connectors

Materials
Material
Nickel plated Brass
Gold Plated

Electrical Characteristics

Impedance
Nominal Characteristic Impedance
75 Ohms
Return Loss (RL)
Frequency [MHz]
DC-1 GHz 23 dB Return Loss 1.16 VSWR
DC-2 GHz 20 dB Return Loss 1.20 VSWR
DC-3 GHz 20 dB Return Loss 1.20 VSWR
Electrical Characteristics Notes: Cable Pullout Force: Exceeding 20 lbs.

Mechanical Characteristics

Footprint/Type: Coax
Connector Interface Type: BNC
Gender: Male - plug
Connector Series Name: ProSNS
Color Band: Violet
Locking: No
Tool Compatibility: CPLCCT-SLMR (compression), PSA59/6/RGB (strip)
Termination Type: Compression
Cable Center Conductor Diameter Limits: .015 - .025 inch
Cable Dielectric Diameter Limits: .065 - .078 inch
Cable Outer Jacket Diameter Limits: .095 - .110 inch

Applicable Environmental and Other Programs

EU CE Mark: Yes

Part Number

Variants
Item #ColorUPCFootnote
FSBNC1RGBNo Color845671001259Q
Footnote: Q - STANDARD PACKAGES CANNOT BE BROKEN.
Patent: https://www.belden.com/resources/patents

History

Update and Revision: Revision Number: 0.36 Revision Date: 07-11-2019
