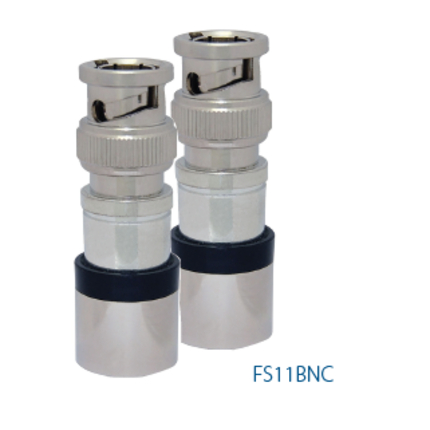

FS11BNC-25 - ProSNS RG-11 BNC Coax Compression Connector 7/16" Hex Head


ProSNS RG11 BNC compression connector, non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. Fits most RG11 standard through quad-shield cables. 25 per Pack

Product Overview

Suitable Applications: CCTV, Security Cameras, Video

Physical Characteristics (Overall)

Packaging: 25 Pack
Number of Pieces: 1

Connectors

Materials
DescriptionMaterial
NutNickel/Tin Plated Brass
O-RingEthylene Propylene
BodyNickel/Tin Plated Brass
ContactGold Plated

Mechanical Characteristics

Footprint/Type: Coax
Connector Interface Type: BNC
Gender: Male - plug
Connector Series Name: ProSNS
Color Band: Black
Locking: No
Tool Compatibility: CPLCCT-11 BNC (compression), PS11 (strip)
Termination Type: Compression
Cable Center Conductor Diameter Limits: .0634 - .0647 inch
Cable Dielectric Diameter Limits: .280 - .294 inch
Cable Outer Jacket Diameter Limits: .390 - .417 inch

Standards

RG Type: 11/U Type

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
FS11BNC-25No Color845671000603

History

Update and Revision: Revision Number: 0.60 Revision Date: 01-31-2020
