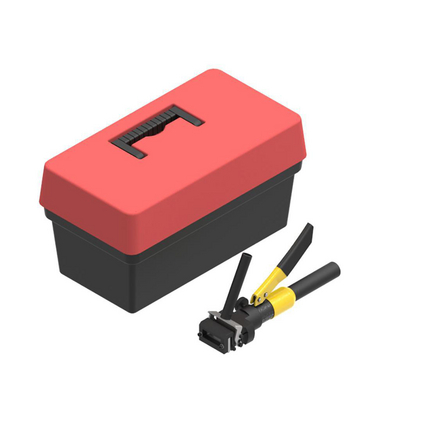

(4)Fiber Raceway Slotting Tool - Hand, Hydraulic Tool with Carrying Case
| Environmental Space: | Indoor |
| Weight: | 5.732 lbs |
| Height: | 6.496 in (164.998 mm |
| Width: | 2.952 in |
| Length: | 12.204 in |
| Material |
|---|
| Steel and Plastic |
| Item # | Color | Length |
|---|---|---|
| FRTS5 | Metallic | 12.204 in |
| Notes: | The hydraulic hand held duct slotting tool is a means of making duct end slots, easily, simply and quickly i.e. less than 1 minute to make a slot. The hydraulic tool exerts a force of 5 tonnes, and the jaws are made of hardened carbon steel, for a long service life. To operate, place tool on duct side or end, tighten side release valve knob, pump tool gently, until a slot is made. Release valve knob by unscrewing. Push jaw back using front return handle. Slots for joiners are made repeatedly, quickly and accurately. The slotting tool cuts a slot in the duct end to suit a standard connector. The kit is also provided with a plastic tool box, for transport. |
| Update and Revision: | Revision Number: 0.31 Revision Date: 03-28-2024 |
