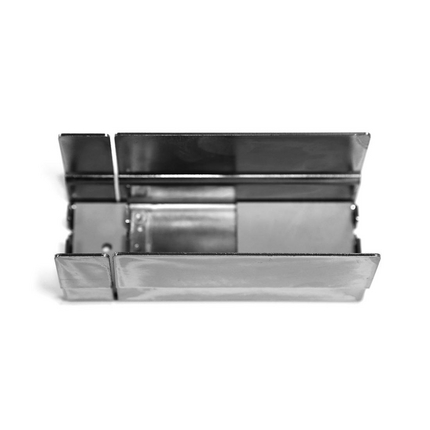

(4)Fiber Raceway Mitre Box, Suits 30mm and 50mm Duct
| Environmental Space: | Indoor |
| Weight: | 0.26 lbs |
| Height: | 2.755 in (69.977 mm |
| Width: | 5.905 in |
| Length: | 2.519 in |
| Material |
|---|
| Mild steel gold passivated finish |
| Item # | Color | Length |
|---|---|---|
| FRTM2 | Metallic | 2.519 in |
| Notes: | This mitre box is a simple mechanical means of preparing a shortened length of 30 and 50mm duct for connection to another standard part. e.g. elbow, cross connector, etc. The mitre box ensures that a true 90-degree cut is achieved with a panel saw on each of these duct sizes. |
| Update and Revision: | Revision Number: 0.31 Revision Date: 03-28-2024 |
