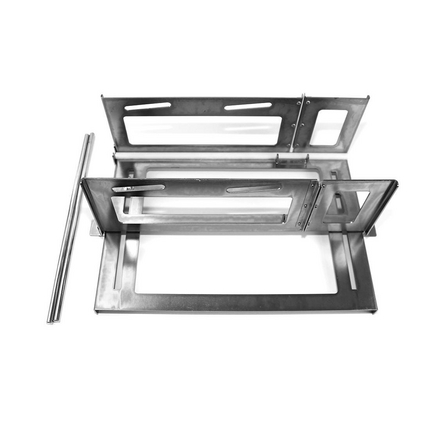

(4)Fiber Raceway Mitre Box, Suits 100, 220, and 300mm Ducts
| Environmental Space: | Indoor |
| Weight: | 4.85 lbs |
| Height: | 6.299 in (159.995 mm |
| Width: | 18.503 in |
| Length: | 8.267 in |
| Material |
|---|
| Steel |
| Item # | Color | Length |
|---|---|---|
| FRTM1 | Metallic | 8.267 in |
| Notes: | This mitre box is a simple mechanical means of preparing a shortened length of 300, 220, 100 or 100 x 50mm duct for connection to another standard part. e.g. elbow, cross connector, etc. The mitre box ensures that a true 90-degree cut is achieved with a panel saw on each of these duct sizes |
| Update and Revision: | Revision Number: 0.31 Revision Date: 03-28-2024 |
