FRMV4K - Fiber Raceway Mounting Vertical Strut Kit, 220mm


Fiber Raceway Mounting Vertical Strut Kit, Suits 220mm Duct

Product Overview

Environmental Space: Indoor

Construction

Weight: 1.212 lbs
Height: 4.055 in (102.997 mm
Width: 1.574 in
Length: 7.480 in

Product Material

Materials
Material
Mild steel, Nickel Plated finish

Related Part Numbers

Variants
Item #ColorLength
FRMV4KMetallic7.480 in

Product Notes

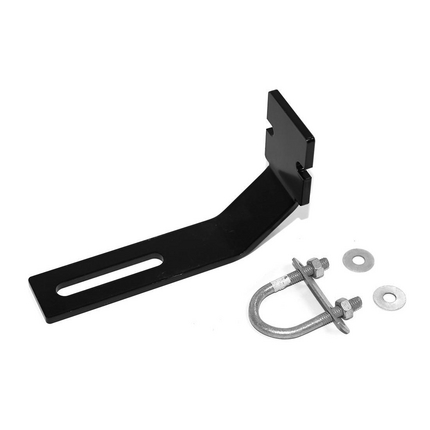

Notes: This clamp is a means of attaching either a 220 or 100mm duct system to (up to) 30mm (1”) diameter tube or 25mm (1”) square tubes in an under floor system. It consists of a slotted bracket and U bolt which fit the standard round or square vertical used in most sub floor systems. It is attached to the tube by the bracket and U-bolt, which clamp the tube between the bracket and U-bolt. Two 8mm dia oversize washers are included to aid clamping to square vertical RHS tube, as well as round tube. A single long slot provides a range of horizontal adjustment. The duct-mounting bracket is mounted at the slot to hold the duct in place. These brackets are available separately.

History

Update and Revision: Revision Number: 0.72 Revision Date: 03-28-2024
