(4)Fiber Raceway Mounting Trapeze Style Kit, 300mm
| Environmental Space: | Indoor |
| Weight: | 2.094 lbs |
| Height: | 1.259 in (31.979 mm |
| Width: | 1.968 in |
| Length: | 12.992 in |
| Material |
|---|
| Mild steel Extensions: Nickel Plated finish Duct Bracket: Powder coat Black Threaded rod, nuts & washers: zinc plated finish |
| Item # | Color | Length |
|---|---|---|
| FRMT5K | Metallic | 12.992 in |

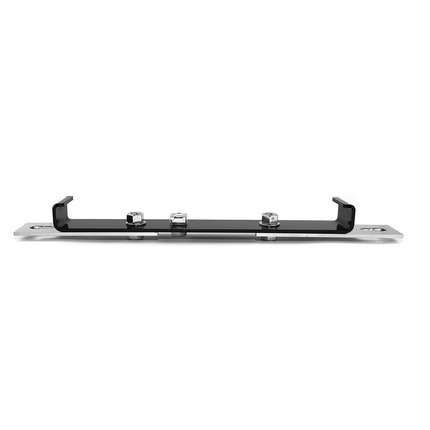

| Notes: | The mounting bracket kit is used to attach (300x100mm) plastic duct to duct mounting ironwork. They allow 300mm ducting to be fitted to either 1/2” or 5/8” UNC threaded rods, or alternatively M12 and M16 metric threaded rods. This kit consists of: a 300mm duct mounting bracket with 3 x M12 hex head set screws and nuts and 2 x straight brackets. The mounting bracket grips the 300mm ducting and bolts to the supporting brackets. The straight bracket/s are secured onto either 1/2” or 5/8” UNC threaded rods, or alternatively M12 and M16 metric threaded rods; which are supplied with kits. These kits are both available separately. Typically, the 1/2” dia UNC threaded rods (alternatively M12 threaded rods) are used for suspended mounting from the ceiling; whilst the 5/8” dia UNC threaded rods (alternatively M16 threaded rods) are used for mounting the duct system above racks. |
| Update and Revision: | Revision Number: 0.170 Revision Date: 03-28-2024 |
