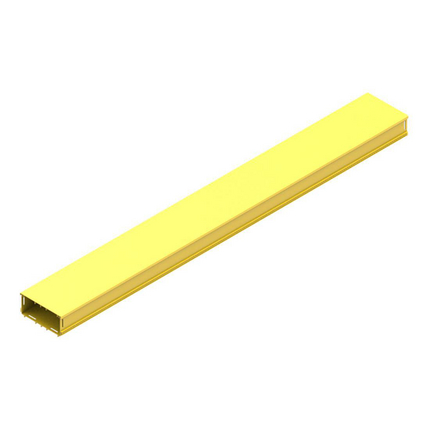

(4)Fiber Raceway Duct & Snap On Lid, 4x8, 2 meters long
| Environmental Space: | Indoor |
| Weight: | 10.78 lbs |
| Height: | 4.527 in (114.986 mm |
| Width: | 9.251 in |
| Length: | 78.740 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRD4TYL | Yellow | 78.740 in |
| Notes: | The 220 mm duct lid is a snap fit onto 220mm straight duct. The lid is quickly and easily fitted and removed from 220mm straight duct, when required. Both the lid and duct are made of tough Noryl plastic with a non - halogen fire retardent. The duct connects to other duct sections and various bends, adapters, etc, using either: a standard joiner or a slotless joiner which are available separately. A 220mm duct carries up to 800 x 3mm dia optical fibre cords to a depth of 50mm, without causing excessive crushing or stress on them. This is the maximum recommended number of optical fibre cords for 220mm duct. |
| Update and Revision: | Revision Number: 0.202 Revision Date: 03-28-2024 |
