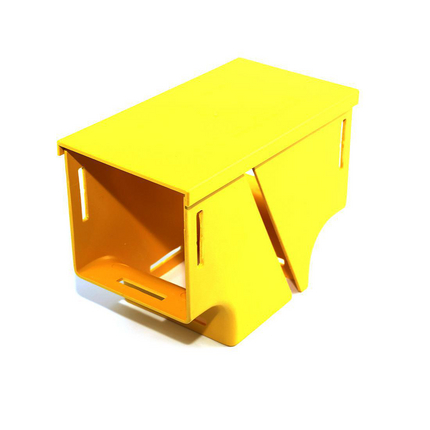

(4)Fiber Raceway Vertical Tee, 4x4, 100mm x 100mm Drop Off, Retrofit, Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.674 lbs |
| Height: | 5.905 in (149.987 mm |
| Width: | 8.070 in |
| Length: | 4.448 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCV3YLR | Yellow | 4.448 in |
| Notes: | The entry suite is basically a 100mm vertical drop off point in a 100mm horizontal duct system. This is usually installed where a large number of optical fibre cords are to be dropped off below, eg. in optical fibre distribution frames. It provides free flow for the ongoing fibres and strain relief for those exiting down the 100mm vertical section. There are two 100mm horizontal outlets, and a 100mm vertical outlet which use either: standard joiners or a slotless joiner. These are available separately. The entry suite allows for easy retrofitting of fibres into an existing assembly, as it has a slot on one side. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
