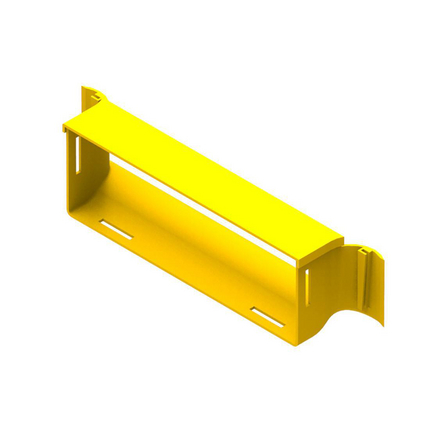

(4)Fiber Raceway Tee Break-Out, 4x12, 300mm, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.511 lbs |
| Height: | 3.818 in (96.977 mm |
| Width: | 15.944 in |
| Length: | 4.527 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94‐VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCU5YL | Yellow | 4.527 in |
| Notes: | The break out assembly is used to provide a safe, exit for optical fibre cord/s to equipment, at any point in a 300mm ducting system. It is normally used to provide a break out in existing duct systems, and clips straight into a cut out provided by the cut out tool or made using the cut out jig; which are available separately. A cut out width of 345mm –0/+ 2mm needs to be made in the side of the duct. This is about 2.3 cutting operations of the tool, that makes a 145mm wide cut. When used as described, the break out assembly provides a 300mm curved outlet; to which any standard 300mm part can be fitted using the slotless joiner; available separately. A lid is supplied. It can also be used with vertical duct to feed patch cords down to a rack. (Used as a Trumpet Outlet) |
| Update and Revision: | Revision Number: 0.80 Revision Date: 03-28-2024 |
