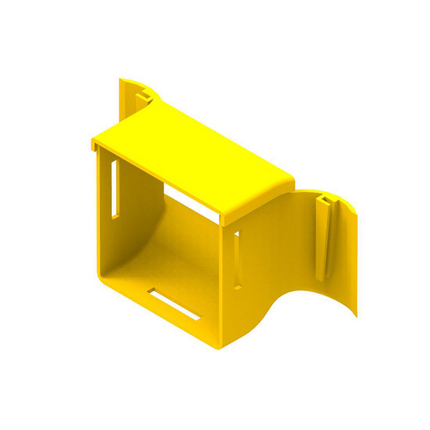

(4)Fiber Raceway Tee Break-Out, 4x4, 100mm, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.132 lbs |
| Height: | 4.094 in (103.988 mm |
| Width: | 7.952 in |
| Length: | 3.464 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCU3YL | Yellow | 3.464 in |
| Notes: | The break out assembly is used to provide a safe, exit for fibre to equipment, at any point in either a 300, 220 or 100 mm ducting system. It is normally used to provide a break out in existing duct systems, and clips straight into a cut out provided by the cut out tool or made using the cut out jig. When used as described, it provides a 100 mm outlet; to which any standard 100 mm part can be fitted using either: the standard joiner or the slotless joiner which are available separately. It can also be used with vertical duct to feed patch cords down to a rack. (Used as an Trumpet Outlet). |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
