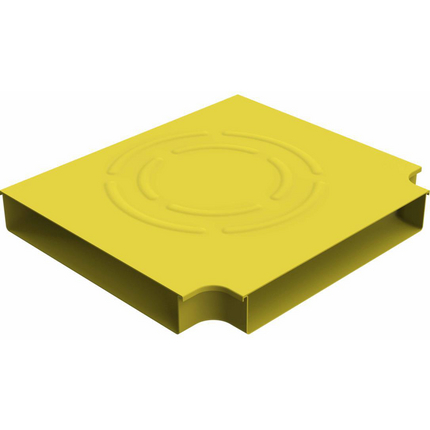

(4)Fiber Raceway Tee, 24x24, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 5.183 lbs |
| Overall Height: | 3.976 in |
| Overall Width: | 33.189 in |
| Overall Length: | 28.819 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Notes: | This tee is used to provide a tee intersection with standard 600mm straight ducting. It requires a joiner (Part No: TC1279-410A) at each interface: (joiners, available separately). The joiners make a smooth & strong joint. |
| Update and Revision: | Revision Number: 0.2 Revision Date: 11-05-2025 |
