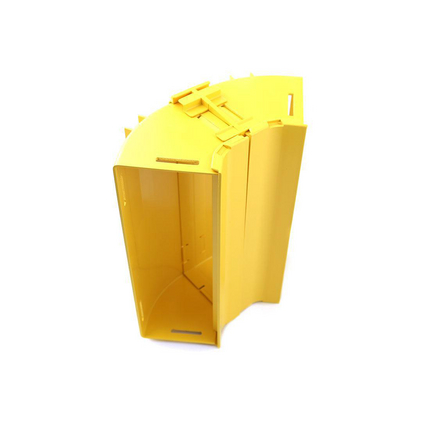

(4)Fiber Raceway Elbow, 4x12, 90 Degree Up, without Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 1.609 lbs |
| Height: | 5.314 in (134.976 mm |
| Width: | 12.677 in |
| Length: | 10.118 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE5YN9UK | Yellow | 10.118 in |
| Notes: | The 90-degree UP elbow is a 300mm vertical lead off with an internal lid, so that cables within the elbow can be accessed. This is usually used where cables are to be installed vertically. There are two 300mm outlets, which use slotless joiners that are available separately. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
