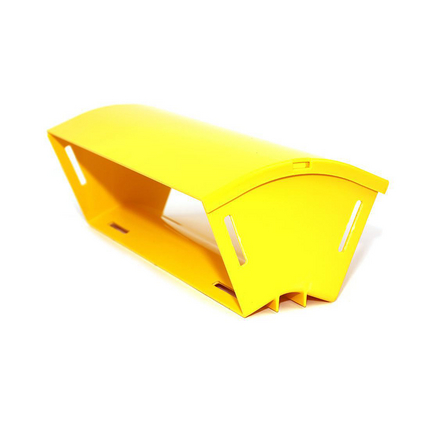

(4)Fiber Raceway Elbow, 4x12, 45 Degree Down, without Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.793 lbs |
| Height: | 4.409 in (111.989 mm |
| Width: | 12.283 in |
| Length: | 6.377 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE5YN4D | Yellow | 6.377 in |
| Notes: | This 300-mm down elbow is a 45-degree angled lead off with an external lid, so that new fibres can be installed within the elbow and existing fibres removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 300-mm outlets, which use slotless joiners which are available separately. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
