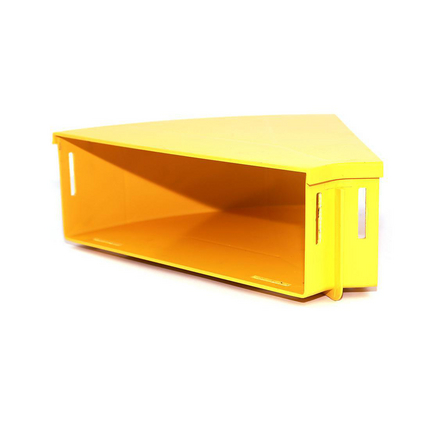

(4)Fiber Raceway Elbow, 4x12, 45 Degree Horizontal, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.992 lbs |
| Height: | 4.527 in (114.986 mm |
| Width: | 13.385 in |
| Length: | 11.102 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE5YL4H | Yellow | 11.102 in |
| Notes: | This elbow provides a method of diverting the 300mm duct system around objects. A cover is supplied. It can be used with a 300mm tee to feed a duct at a 45-degree angle to the main system. The elbow can also be used in pairs to align ducts and other components with an offset. A slotless joiner is used at each interface, to produce a smooth and strong joint. They are available separately. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
