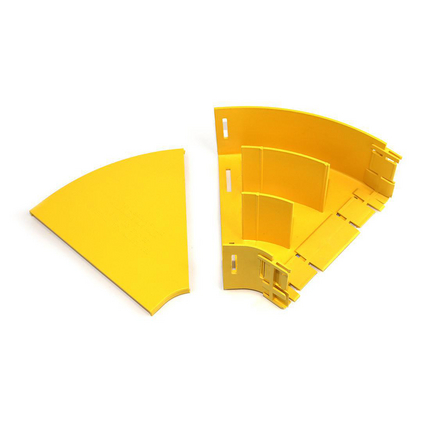

FRCE4YN4H - Fiber Raceway Elbow, 4x8, 45 Degree Horizontal


Fiber Raceway Elbow, 4x8, 45 Degree Horizontal, without Lid, Yellow

Product Overview

Environmental Space: Indoor

Construction

Weight: 0.952 lbs
Height: 4.133 in (104.978 mm
Width: 10.236 in
Length: 9.448 in

Product Material

Materials
Material
Flame retardant plastic

Related Part Numbers

Variants
Item #ColorLength
FRCE4YN4HYellow9.448 in

Product Notes

Notes: This elbow provides a method of diverting the 220mm duct system around objects. It can be used with a tee to feed a duct at a 45-degree angle to the main system. The elbow can also be used in pairs to align ducts and other components with an offset. There are two 220-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner or a slotless joiner that are available separately.

History

Update and Revision: Revision Number: 0.72 Revision Date: 03-28-2024
No accessories are available for this product
