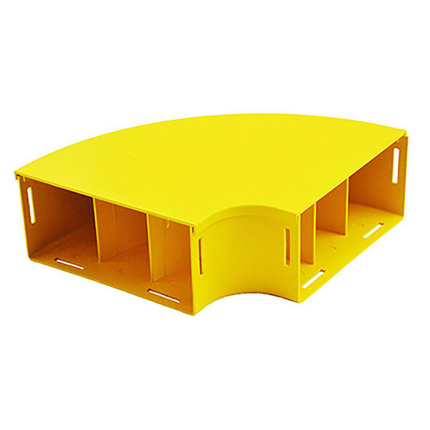

(4)Fiber Raceway Elbow, 4x8, 90 Degree Horizontal, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 1.79 lbs |
| Height: | 4.133 in (104.978 mm |
| Width: | 12.007 in |
| Length: | 12.007 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE4YL9H | Yellow | 12.007 in |
| Notes: | The 220mm elbow assembly is used to provide a horizontal, right angled bend (right or left hand) with standard 220mm straight ducting. It requires a standard joiner at each interface, which provides a smooth & strong joint. (Note: A slotless joiner is also available). |
| Update and Revision: | Revision Number: 0.202 Revision Date: 03-28-2024 |
